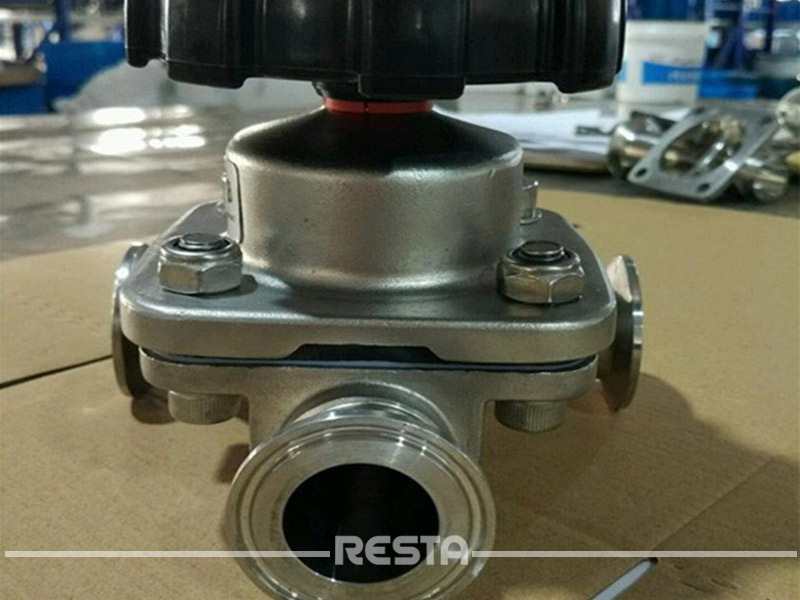

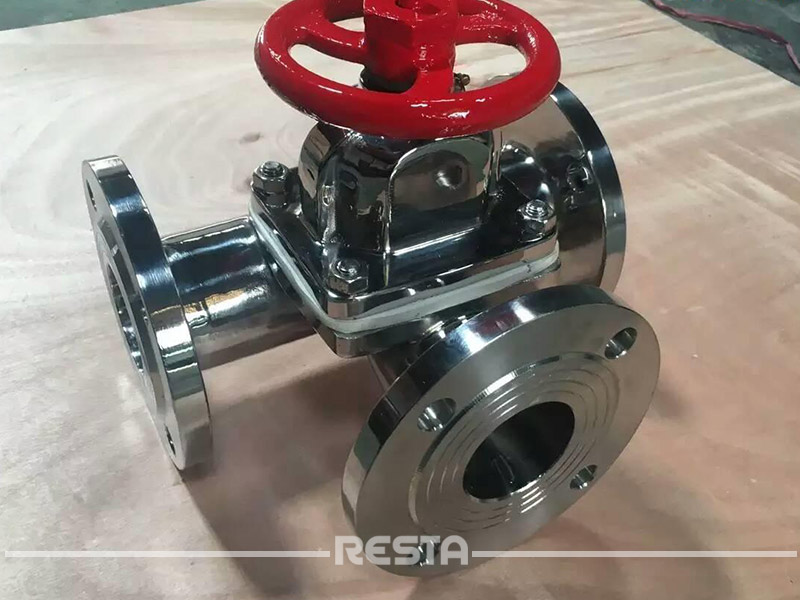

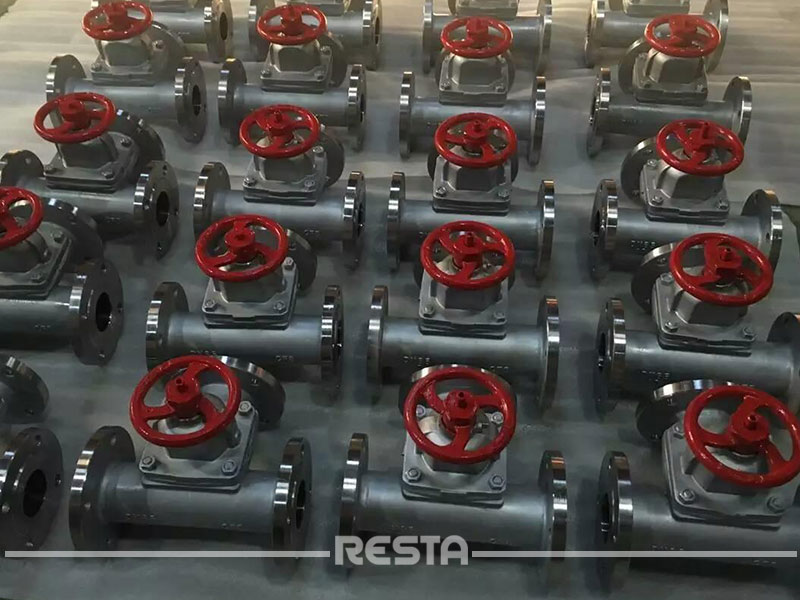

Three Way Diaphragm Valve
Three way （3 way）diaphragm valve is used to change the passage section and the flow direction of the medium, and has the functions of diversion, cut-off, adjustment, throttling, check, diversion or overflow. Valves can be used to control the flow of fluids such as water, steam, oil, gas, mud, various corrosive media, liquid metals and radioactive fluids.
Three Way Diaphragm Valve Basic Character:
Three way （3 way）diaphragm valve is specially used to control non-corrosive or general corrosive media. The surface of the valve body is unlined or lined with various rubbers for selection. It is suitable for different working temperatures and fluid pipelines. The variety of lining materials can be applied to various media and has good corrosion resistance. The valve body and the cover are separated by the intermediate diaphragm, so that the valve cover and the valve stem parts above the diaphragm are not eroded by the medium. The diaphragm valve is a special form of globe valve.
Size Ranges: 1/2” through 14”
Pressure Ratings: ANSI #125, #150, PN6, PN10, PN16
Standards compliance: ASME B16.34, DIN 3202, BS 5156, ASME B16.10, MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598, BS 4504 or equivalents
Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, or Other Specials
Ends Connections: Flanged RF or FF
Optional Locking Device
Optional Direct Mounting to ISO 5211
Handwheel, Electric or Pneumatic operated
