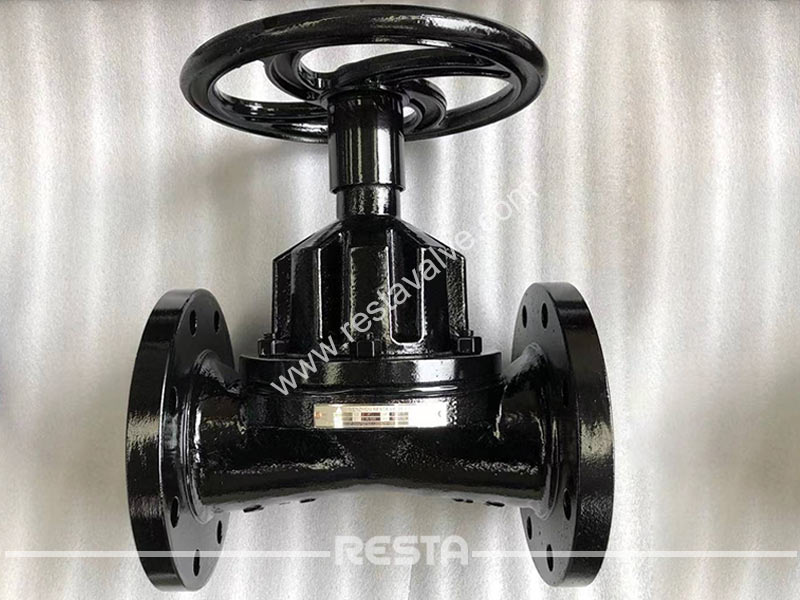

Straight Through Diaphragm Valve

Straight type diaphragm valves is widely applied throughout the chemical, food, paper, steel, mining, pharmaceutical, and other process industries wherever positive shut off, non-contamination, or ease of maintenance is required. Available with a wide range of manual and automatic actuators, these valves are available with weir style and straightway flow patterns. Sizes range from 1/2″ thru 3″ threaded or weld ends: and 1/2″ thru 12″ flanged ends. Pressure ratings to 200 psi and temperatures to 340 F.

Straight Through diaphragm valve Character:

Straight Through diaphragm valve provides a reliable and economic olution in a variety of slurry applications. The valve is easily maintained in-line and there are no packing glands to maintain. The diaphragm is able to close over suspended solids.

Size Ranges: 1/2” through 14”

Pressure Ratings: ANSI #125, #150, PN6, PN10, PN16

Standards compliance: ASME B16.34, DIN 3202, BS 5156, ASME B16.10, MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598, BS 4504 or equivalents

Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, or Other Specials

Ends Connections: Flanged RF or FF

Optional Locking Device

Position indicator

Optional Direct Mounting to ISO 5211

Regular Bore

Handwheel, Electric or Pneumatic operated

For more information about Aluminum ball valve, please contact us by email or leave message below
