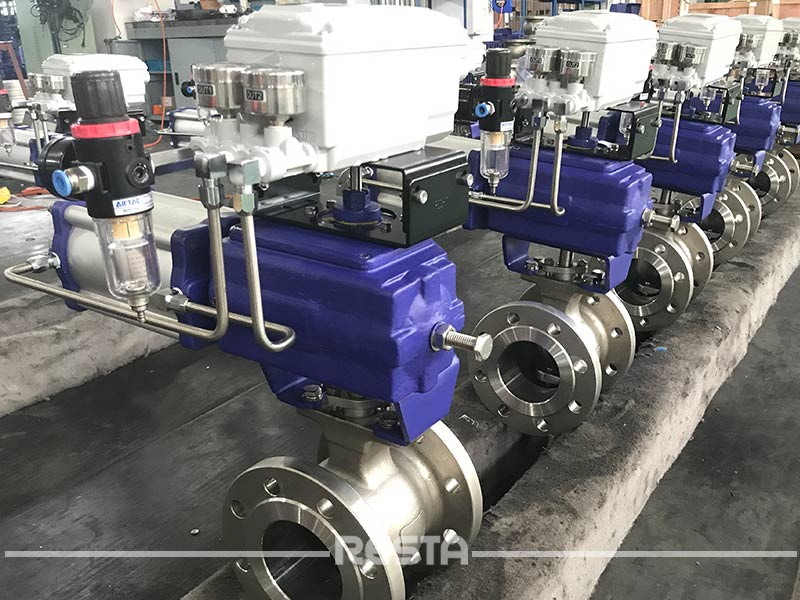

Segment Ball Valve

Segment ball valve (VNotch Ball Valve) made by Resta China is a high performance control valve, control rate could be 100:1. It is designed with V-notch ball which has great shearing and self-cleaning function. It is suitable for controlling medium with fibers or tiny solid particles, such as paper making, oil refining, chemical and petrochemical industries.

 Segment Ball Valve Basic Character:

V port ball valve has either a ‘v’ shaped ball or a ‘v’ shaped seat. This allows the orifice to be opened and closed in a more controlled manner with a closer to linear flow characteristic. When the valve is in the closed position and opening is commenced the small end of the ‘v’ is opened first allowing stable flow control during this stage. This type of design requires a generally more robust construction due to higher velocities of the fluids, which might damage a standard valve. V-Port Ball Valves are quarter-turn control ball valves for accurate throttling control of fibrous suspension applications plus clean, dirty viscous, and corrosives liquids and gases. They are designed to meet the highest industry standards for dynamic performance. Flanged or flangeless designs meet ANSI or ISA face-to-face dimensions. V-Port Ball Valve design features include blow-out proof shaft protection, high flow capacity, splined ball-to-shaft connection for ease of maintenance and zero backlashes. Seat options include flexible metal, rigid metal and PTFE seats.

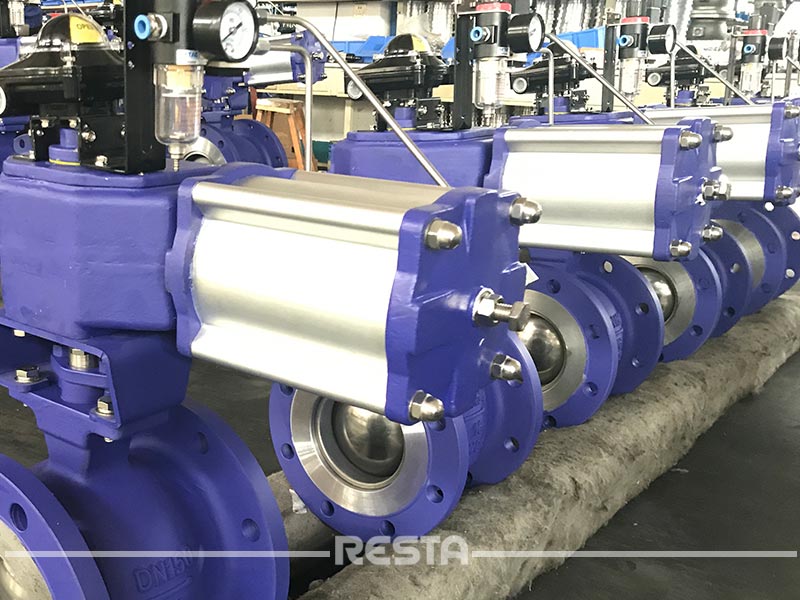

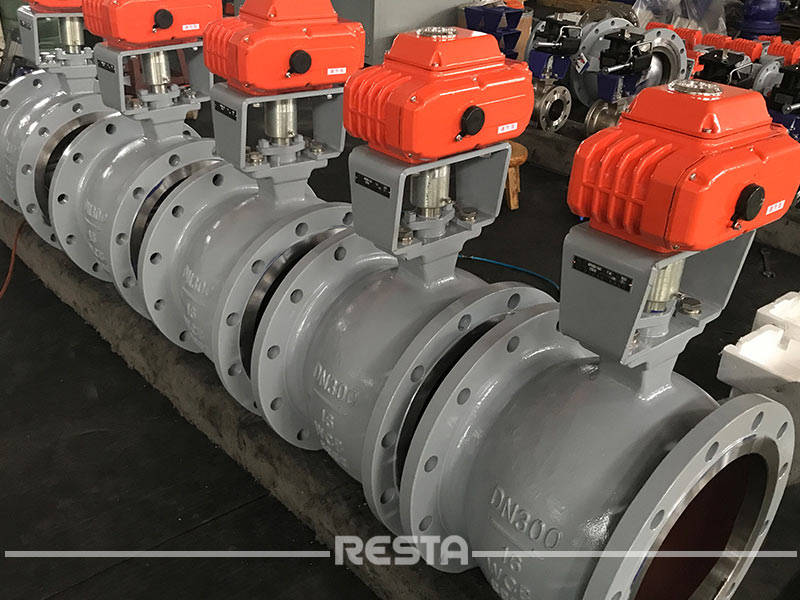

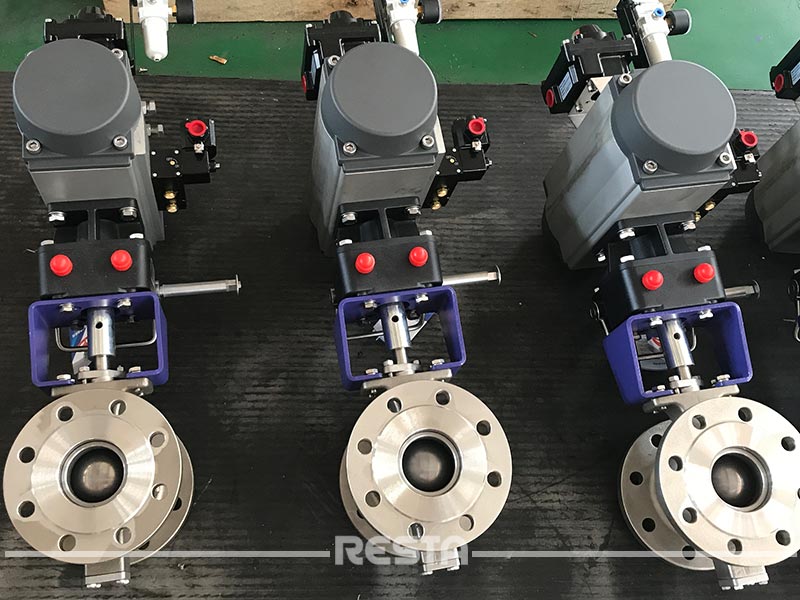

Direct Mounting with Pneumatic or Electric Actuators
Pressure Class: ANSI#150, #300, PN10 to PN64

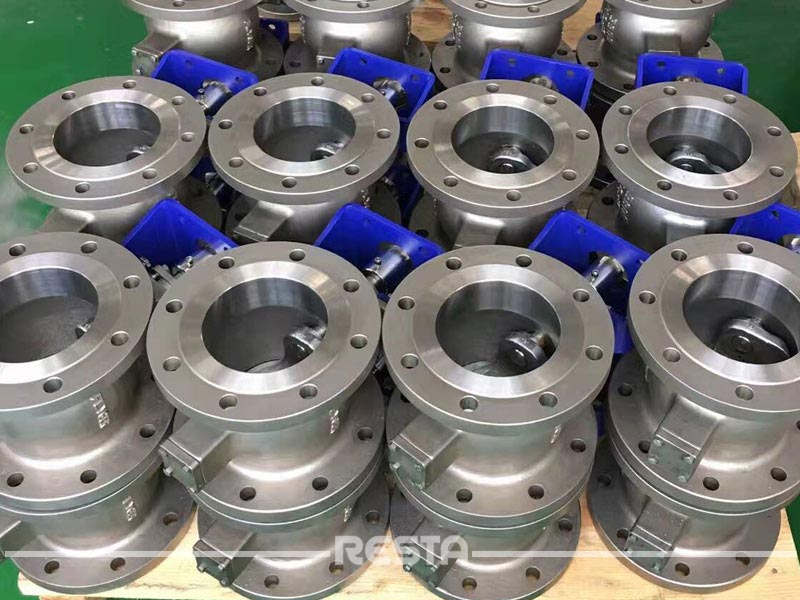

Cast Carbon Steel or Stainless Steel Body
Stainless Steel Trim in Gr. 304 or 316

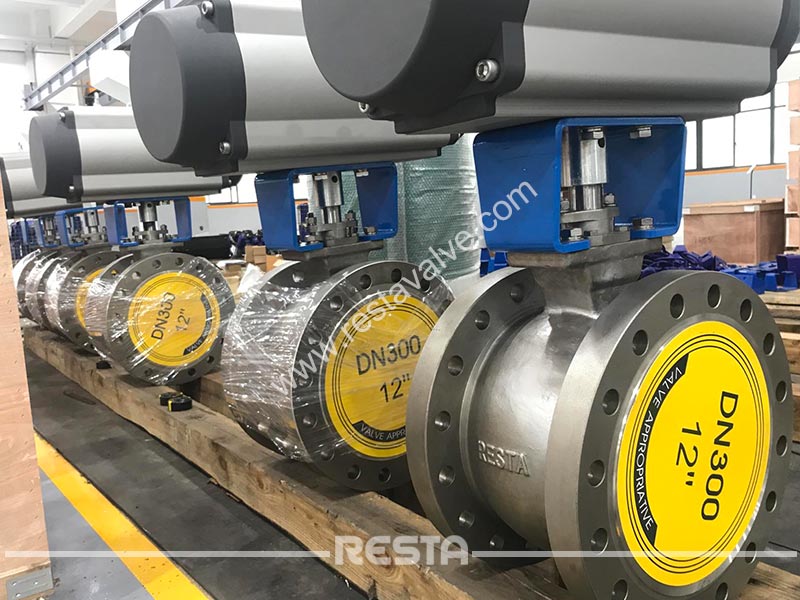

Size Ranges: DN15 through DN300
Body Styles: Flanged Ends.
Easy maintenance
ASME B16.34, DIN 3202, API 6D
ASME B16.10, MSS SP-71, BS EN558
ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226
ISO 5208, API 598

For more information about Segment Ball Valve, please contact us by email or leave message below
