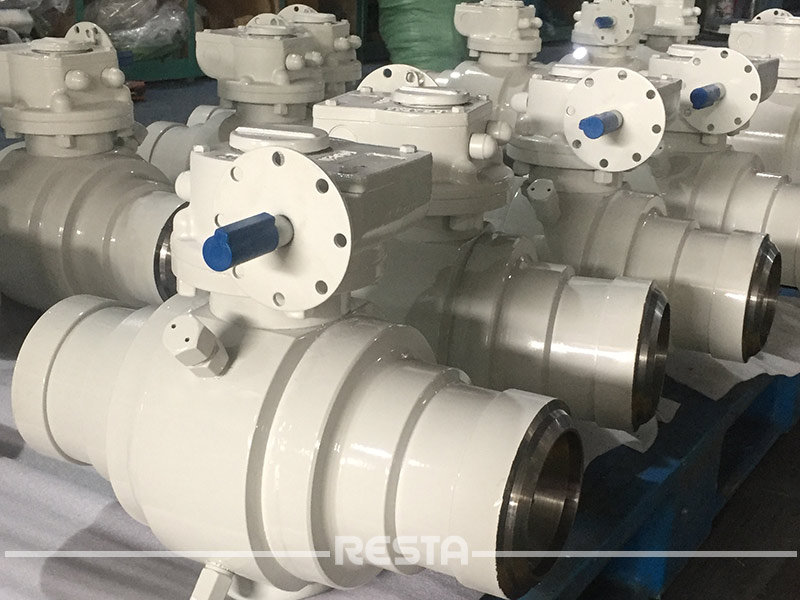

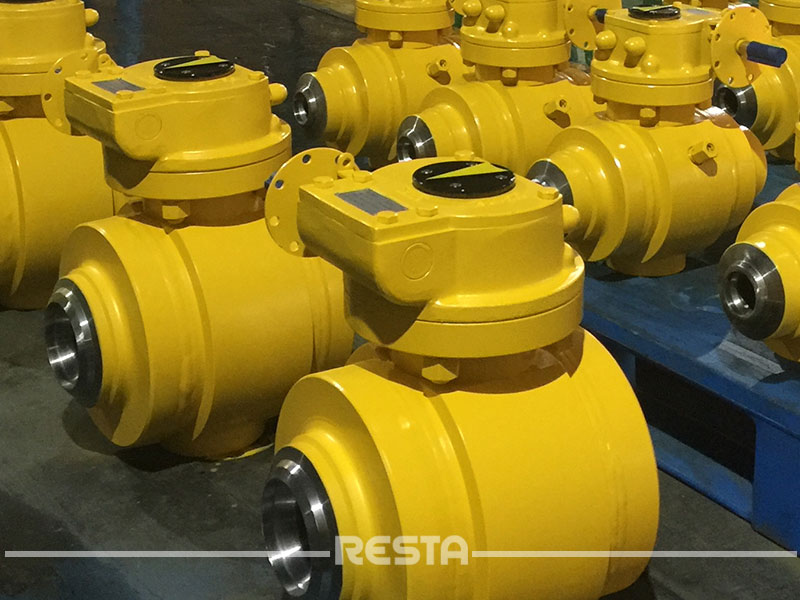

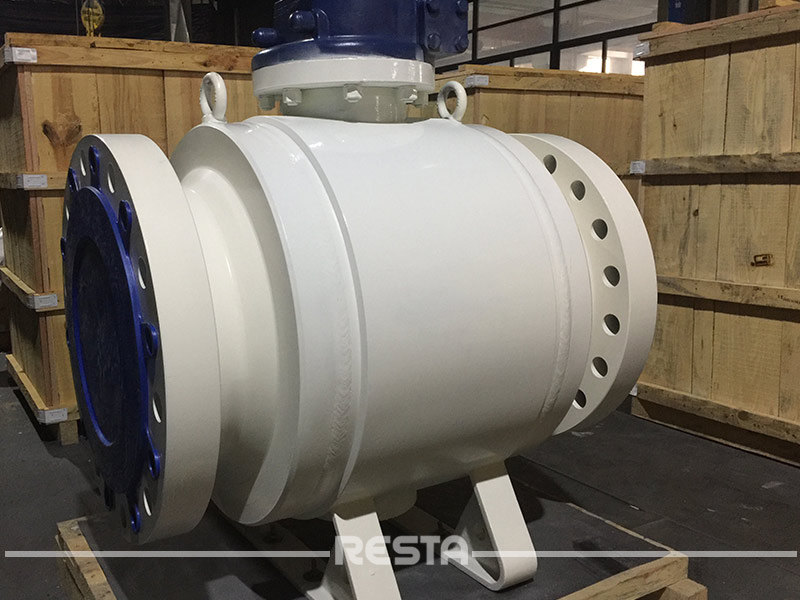

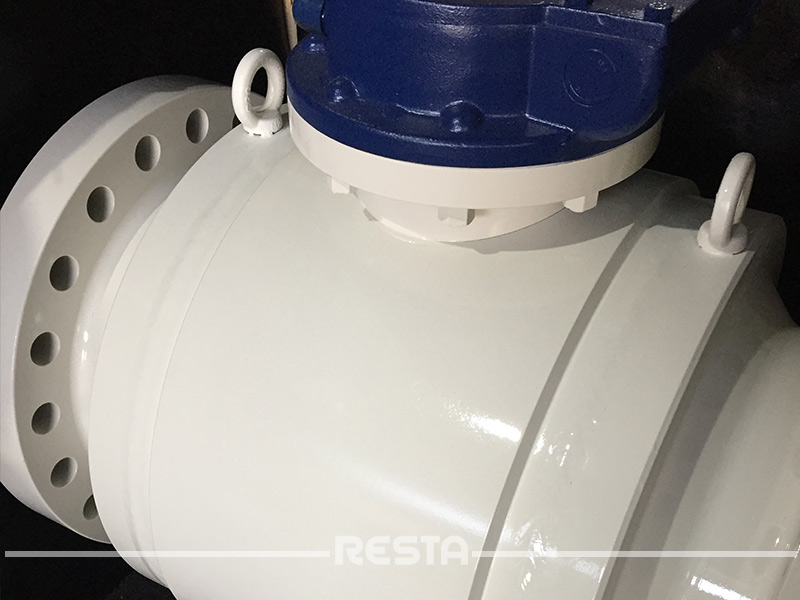

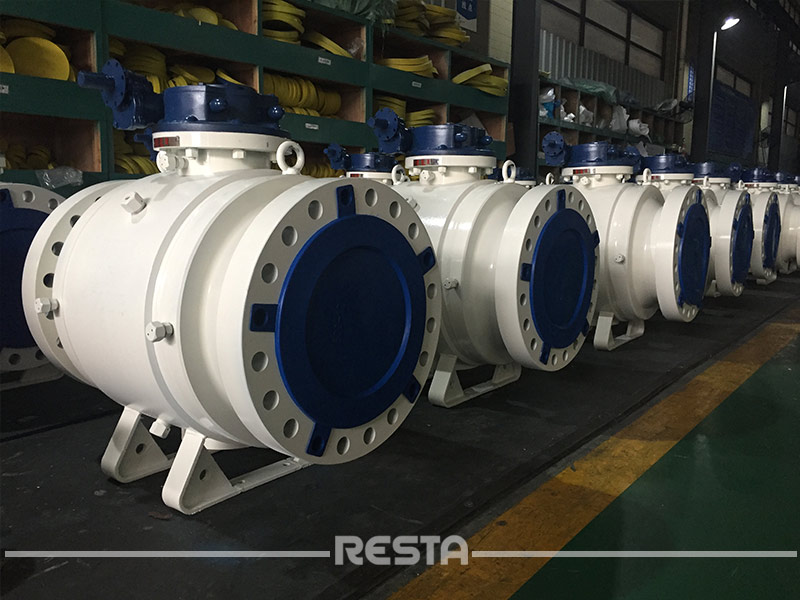

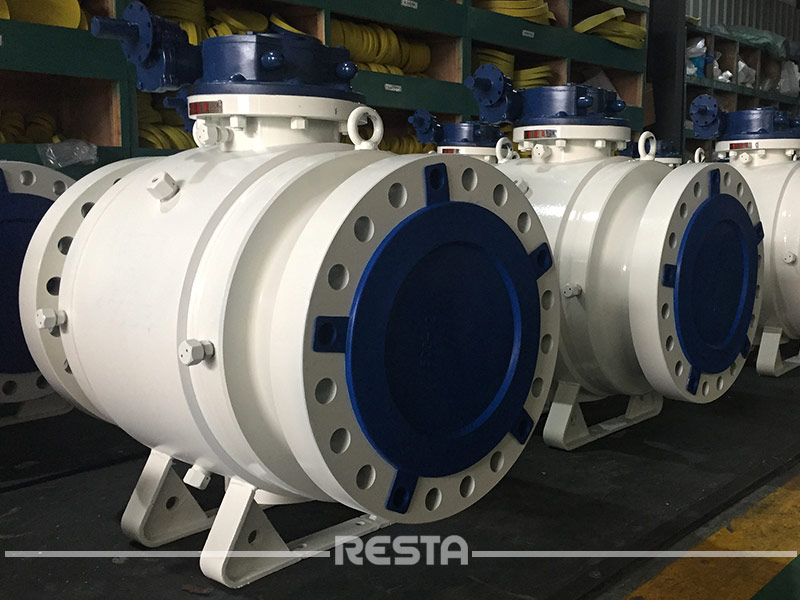

Fully welded Ball Valve

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP,DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

Full Welded Ball Valves are designed and manufactured to the most updated international standards API 6D, ASME B16.34, EN12516, DIN3357-1 or equivalents. With standard features of Fire Safe, Anti-staic and Stem Blow-out Proof:

Standards compliance: API 6D, ASME B16.34, EN12516, DIN3357-1 or equivalents

Size Ranges: 1/2” through 16”, DN15 to DN400

Pressure Ratings: ANSI #150 to 900, PN10 Thru PN150

Standard Body Materials: Carbon Steel & Stainless Steel

Optional Locking Device or Stem Extension

Ends Connections: W.ExW.E, W.ExFLG

Optional Direct Mounting to ISO 5211

Full Port or Regular Bore

Double Block and Bleed

NACE MR-01-75

For more information about Fully welded Ball Valve, please contact us by email info@restavalve.com or leave message below
