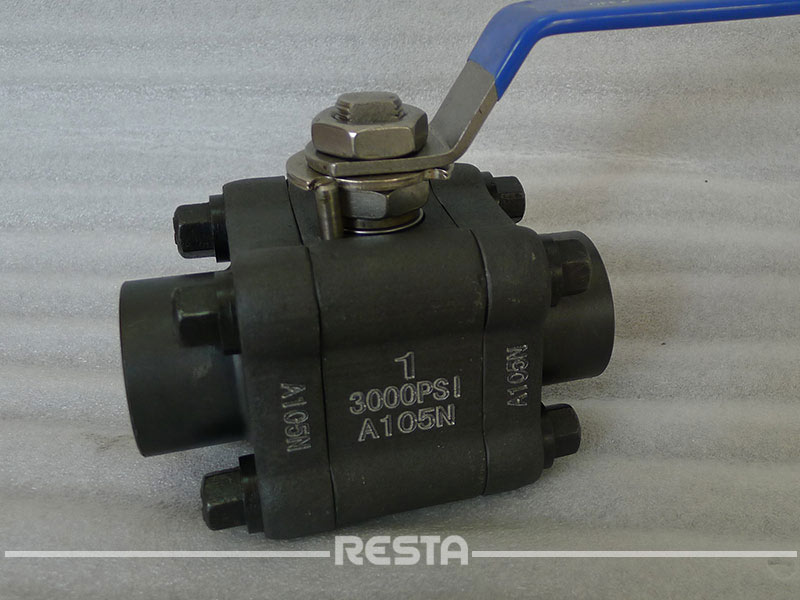

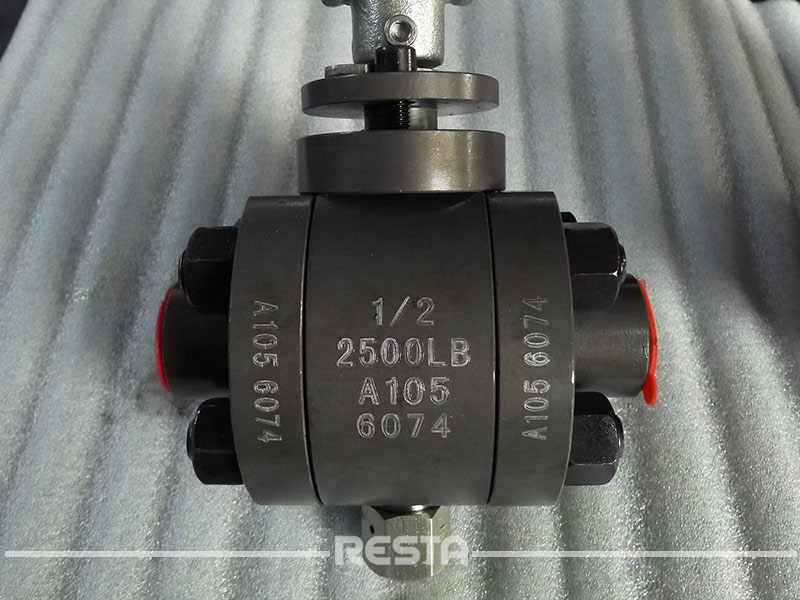

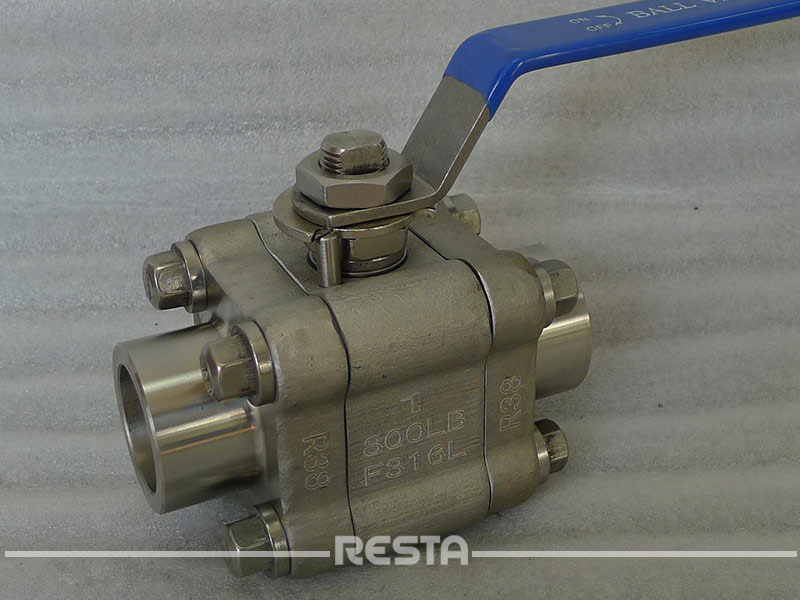

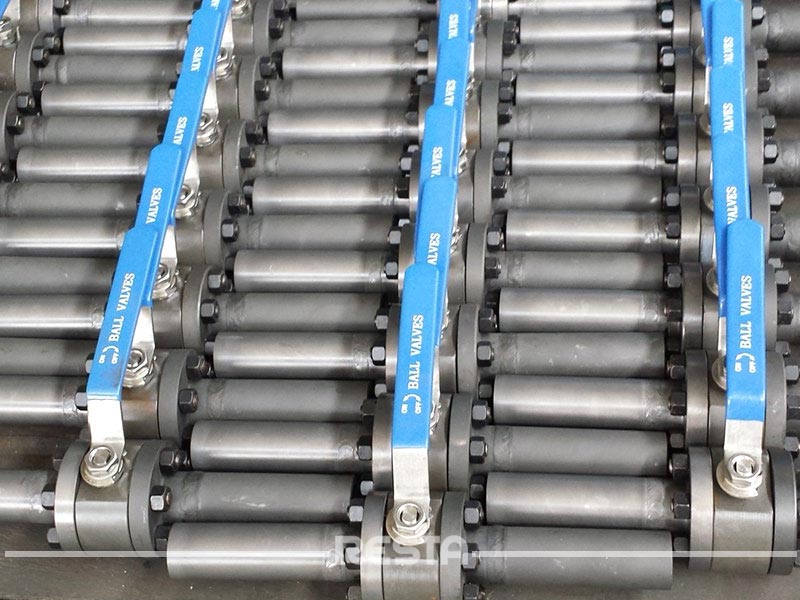

3PC Ball Valve

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP，DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

Three piece Bolted Body Ball Valves are available both in Forged and Investment Castings. In Straight through two ports or Multi-ports structures. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.

Main Features and Advantages

Size Ranges: 1/2” through 4”

Pressure Ratings: 1000WOG, 2000WOG, 3000WOG or ANSI #150 to 2500

Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents

Materials: Cast or Forged Carbon Steel, Stainless Steel, Duplex or Other Specials

Ends Connections: Threaded or Welded Ends précised to international standards

Optional Locking Device or Stem Extension

Optional Direct Mounting to ISO 5211

Full Port or Regular Bore

For more information about Small Size Ball Valve, please contact us by email info@restavalve.com or leave message below
