• Trunnion Mounted ball valve

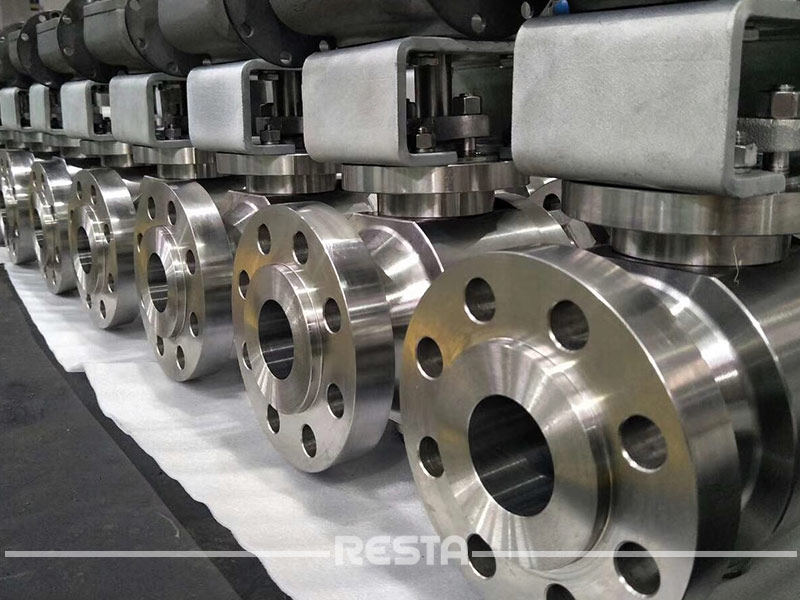

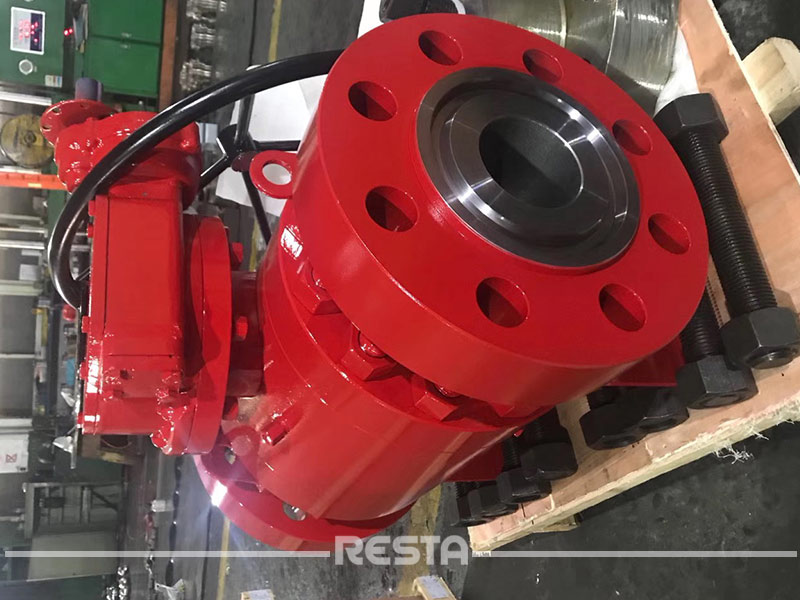

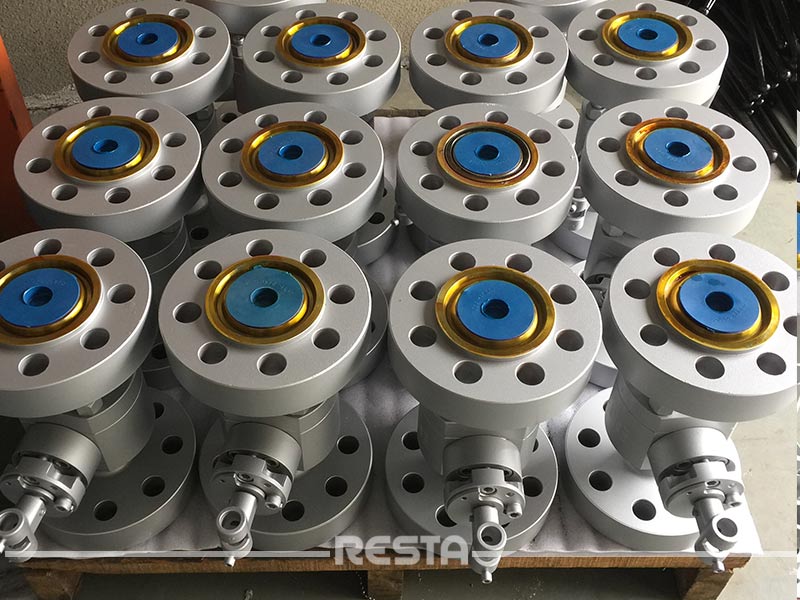

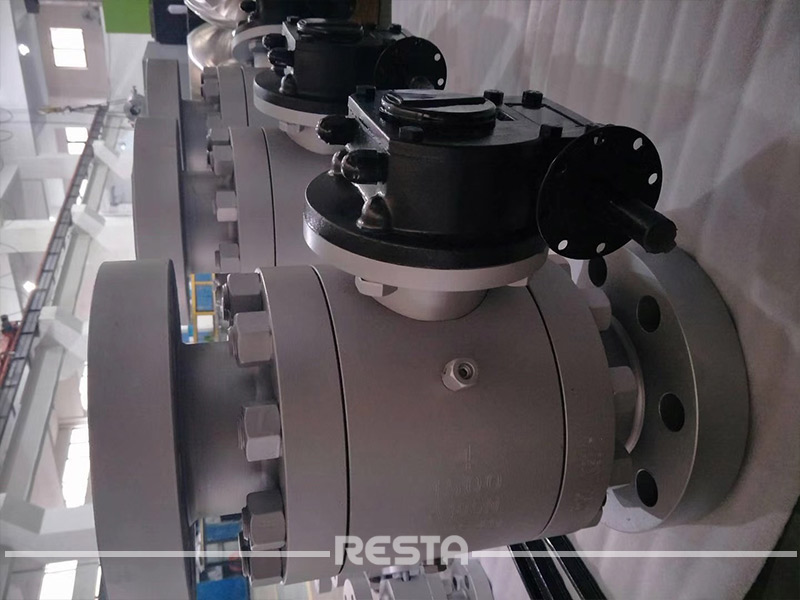

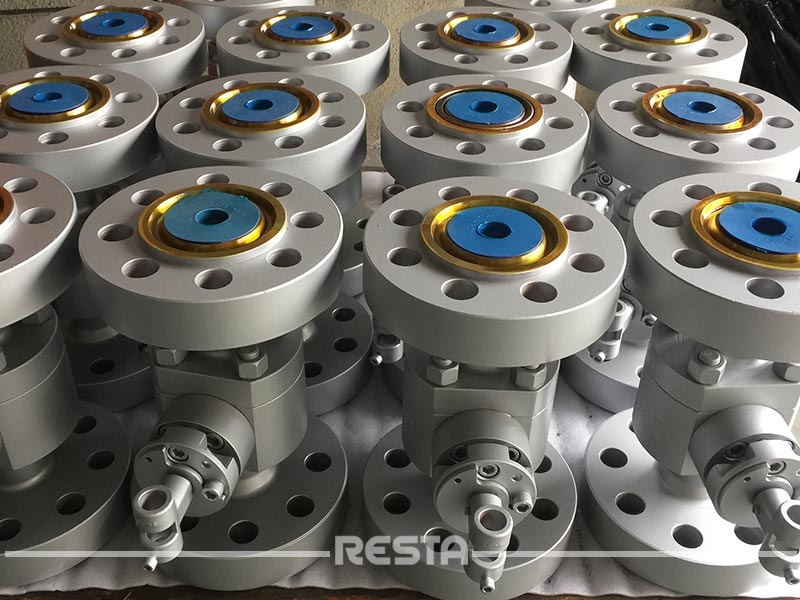

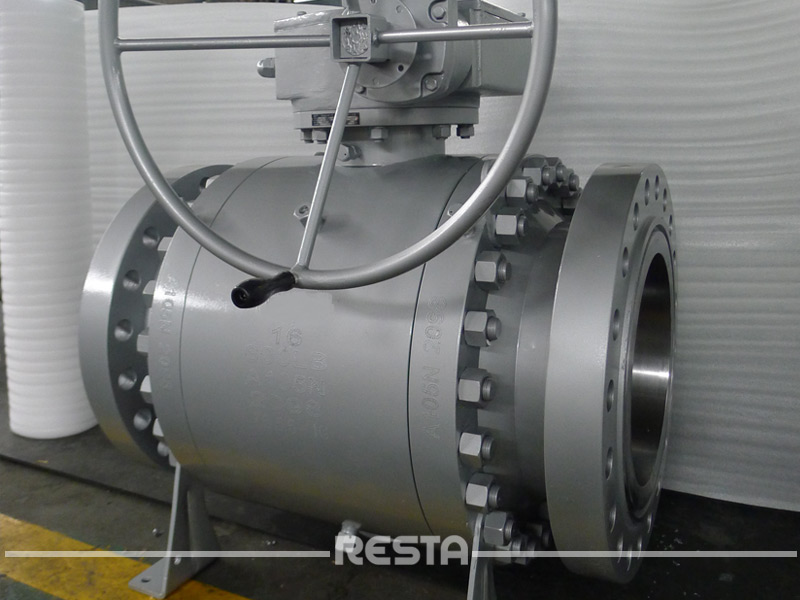

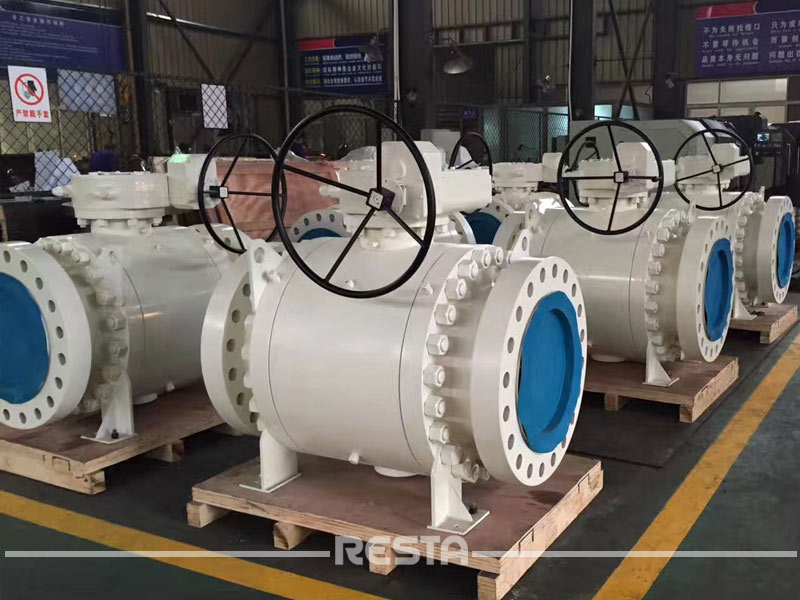

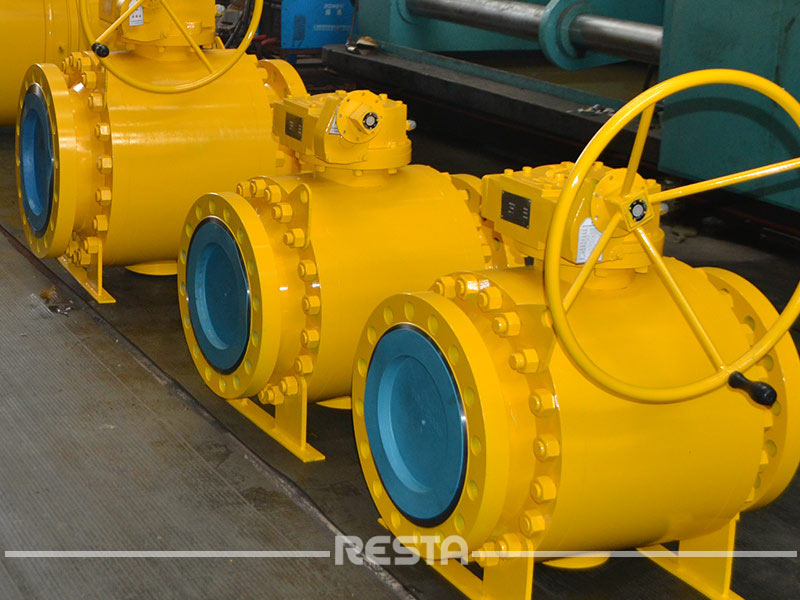

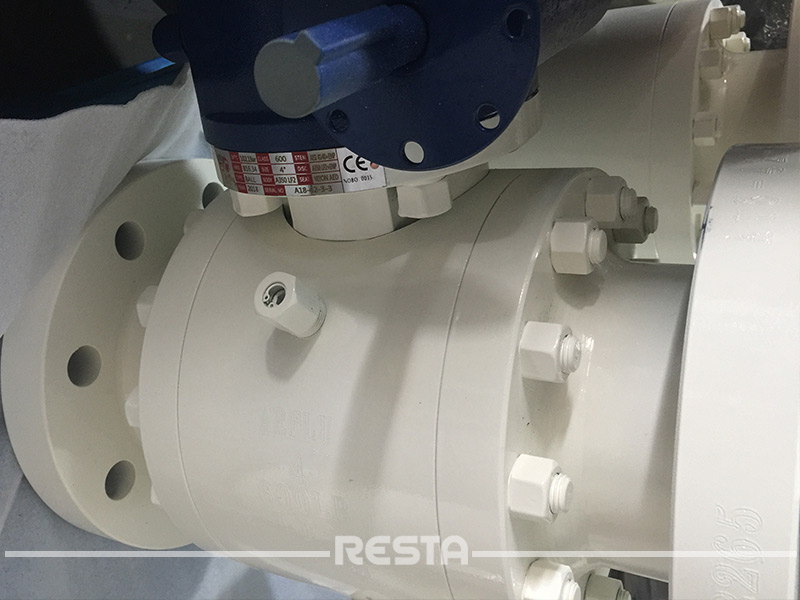

Forged Trunnion Mounted Ball Valve

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP,DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

Forged steel trunion mounted Ball valve are available in types of Two Piece Split Body & Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. Without inherent flaw of cast. Enough wall thickness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe. The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work conditions.
Trunnion Mounted Forged Ball Valves are designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof
Size Ranges: 1/2” through 40”
Pressure Ratings: ANSI #150 to 2500
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Flanged R.F, RTJ, Welded or Victaulic
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Full Port or Regular Bore
Double Block and Bleed
