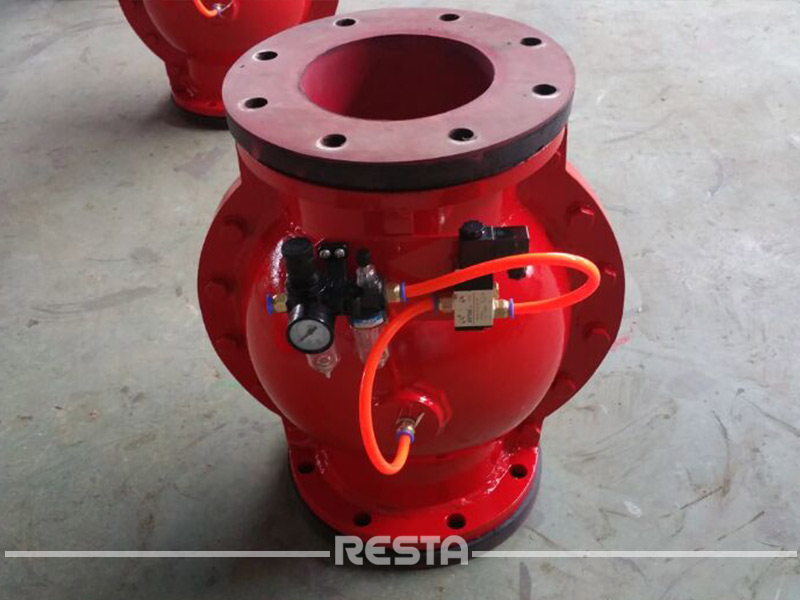

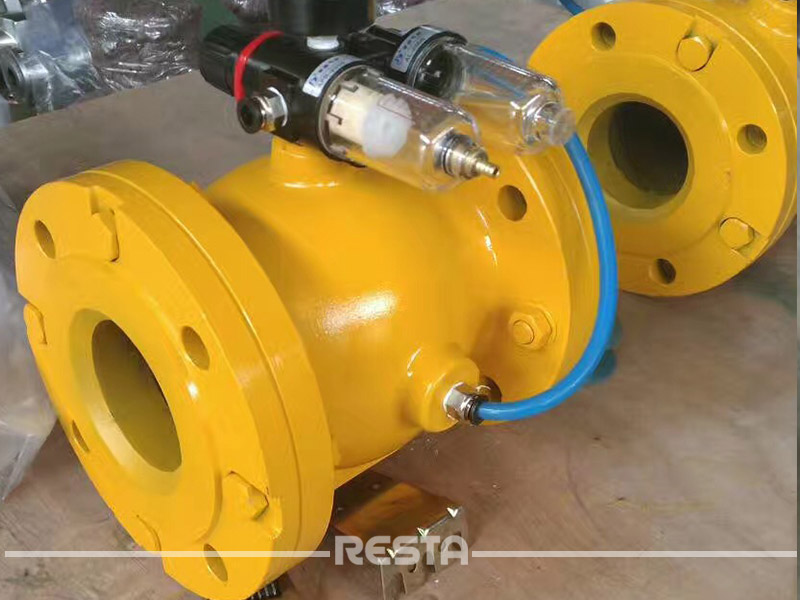

Air Operated Pinch Valve
Resta air operated pinch valves is designed by filling air gap between the valve body and the rubber tube to make the rubber tube deform and cut off the fluid. There is no pressure loss, no blockage, no leakage and high quality sleeve has good performance on abrasion resistance, corrosion resistance, tear resistance, fatigue resistance. So it’s suitable for liquid-solid and gas-solid two-phase media containing mediums.
Air Operated Pinch Valve Basic Character:
Size Ranges: DN25 to DN300
Pressure Ratings: 2 to 6 bar
Body material: carbon steel, cast iron, cast aluminium or plastic material;
Sleeve: Nenet, NR, EPDM, Silicone, etc.
Connection: Flange end: EN 1092-1, ASME B16.5 or thread end: ASME B1.20.1 (NPT)
Control elements: manual three-way valve, 2/3 way solenoid valve, 2/5 way solenoid valve;
Control medium:air or water;Pressure: 3-6 bar;
Applicable media: pulp, acidity, alkalinity, food, etc.
