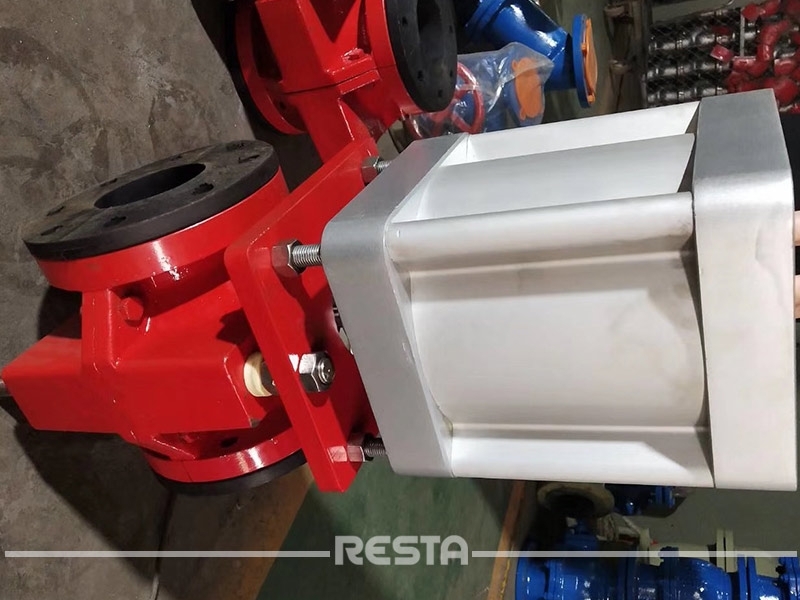

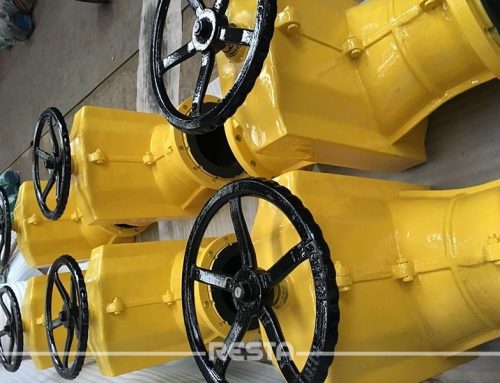

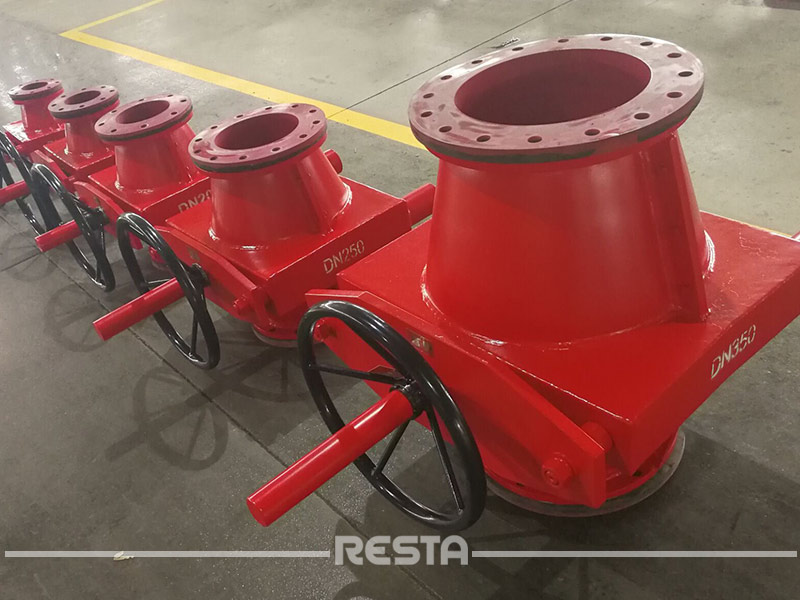

Slurry Pinch Valve
Slurry Pinch valve made by Resta China have excellent resistance on corrosive and abrasive application. It has been widely used in mining, metallurgy, pulp, dry powder, cement and other industry. It’s suitable for the medium containing particles, powders, fibers, Solid or liquid products with abrasive substances and corrosive fluid. Although it has extensive advantages on diffident application, but it’s maintenance cost is very low due to simplest design. That’s why industry experts prefer them.
Slurry Pinch Valve Basic Character:
Size Ranges: DN32 to DN600
Pressure Ratings: ANSI #125, #150, PN6, PN10, PN16
Body material: carbon steel, cast iron, cast aluminium or plastic material;
Stem and the opening and closing mechanism: carbon steel, stainless steel.
Fasteners: anti-corrosion and high strength bolts; grade: 8.8;
Sleeve: high wear-resistant and corrosion-resistant formula rubber pipe according to customer and different working condition
Connection: flange end, according to EN 1092 PN 6/PN10/PN16, AISI Class 150, AS 4087 PN 10/ PN 16, JIS 5K/10K
Operation: Manual, Pneumatic or electric actuator
Application:
Mining (tailings, flotation control, sludge discharge pipeline, tailings filling, various other slurries)
Sewage treatment plants (sludge treatment, gravel removal, raw sewage, lime, peat)
Power plant (FGD system, ash removal system, coal transportation)
Chemical processes (corrosive and abrasive media, powders, particles)
And paper mill, pulp mill, electronic industry, food industry, cement, sand, glass and industrial sewage treatment plant and other fields.
