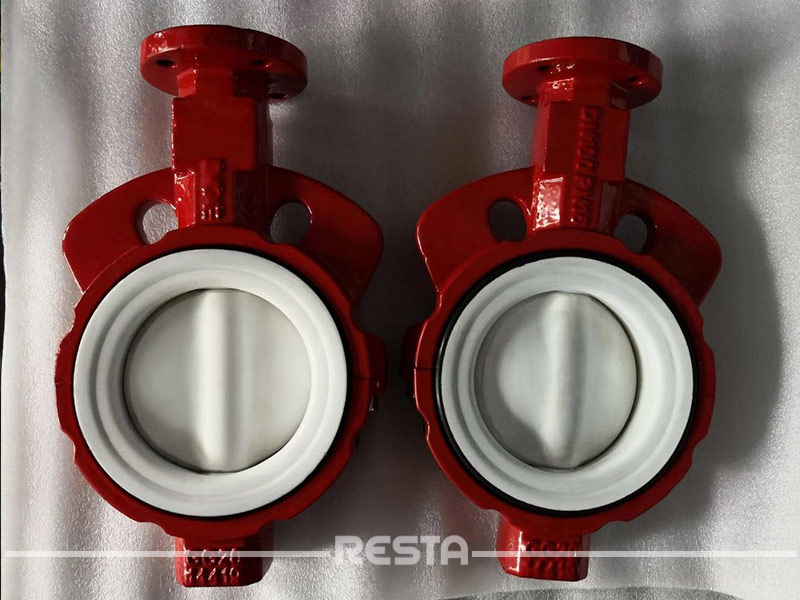

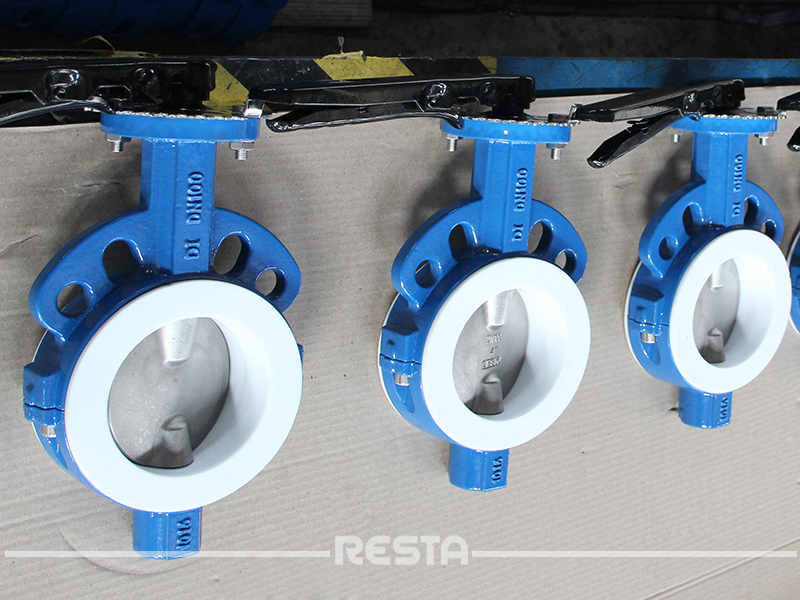

PTFE Lined Butterfly Valve

PTFE lined butterfly valve is designed for aggressive chemical and ultra-pure applications. Fluorine lined resists chemical attack from most known chemical compounds, and with a flexible liner design utilizing a full width, 360 degree, resilient back up liner offers bubble tight shut off in even the most demanding installations. Redundant shaft seals provide a tight, reliable seal to the environment. This is a “maintenance free” valve design which uses long life sleeve bearings and avoids the use of an adjustable packing gland.

PTFE lined Valve Basic Character:

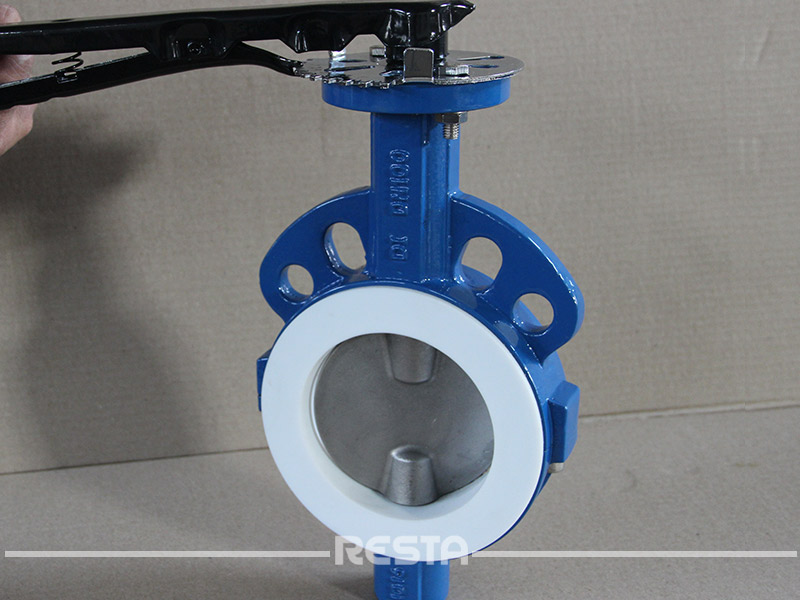

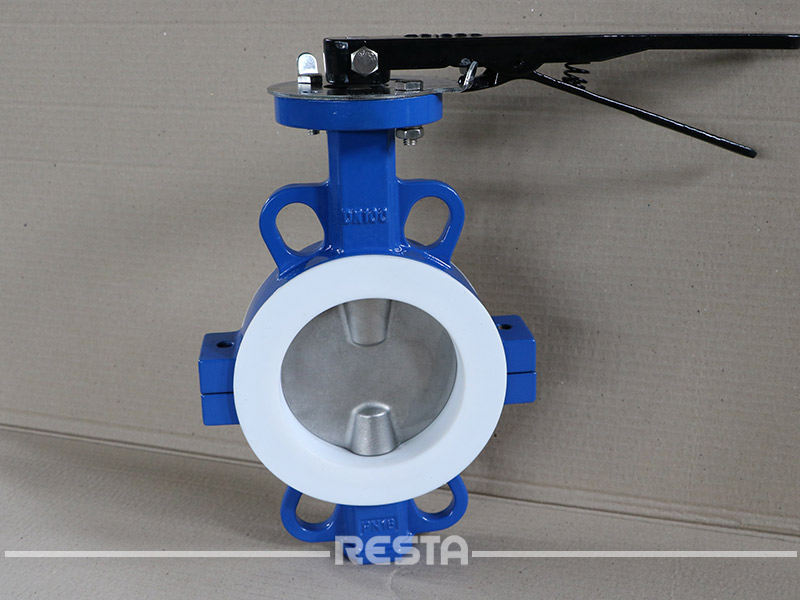

Lockable Lever
Site maintenance
Ease of automation
Positive tight shut-off
Optional top flanges to ISO 5211
Qualified for both gaseous and liquid services
Broad line of body and trim materials for a variety of medium service.
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202
Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Satinless Steel, Alloy Steel, duplex steel and ect.
Temperature: -20 Deg. C to 150 Deg.C
Pressure Ratings: ANSI 150#, PN10, PN16
Size Ranges: 2″ to 24″-50mm to 600mm (Larger sizes upon request)
Body Lining: PTFE, FEP, PFA and etc.
Ends Connections: Wafer, Lugged, Double Flanged
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic

For more information about PTFE lined butterfly valves, please contact us by email or leave message below
