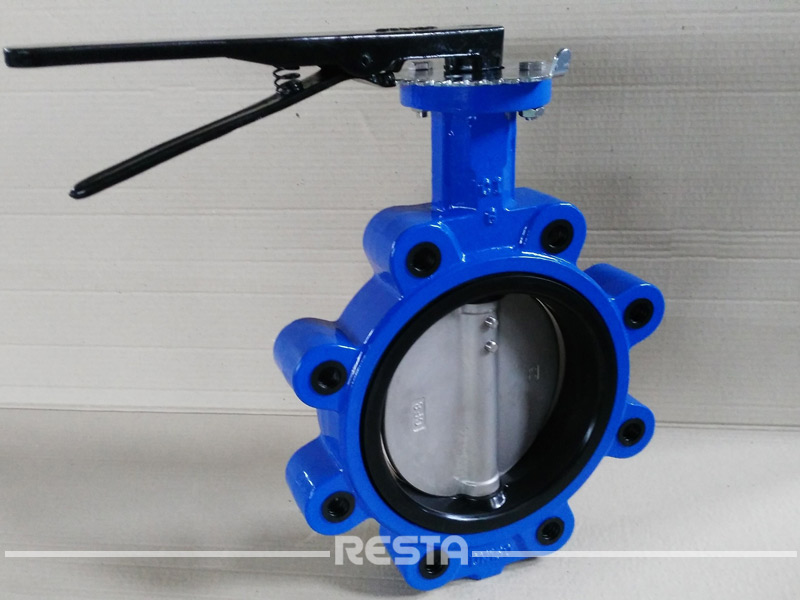

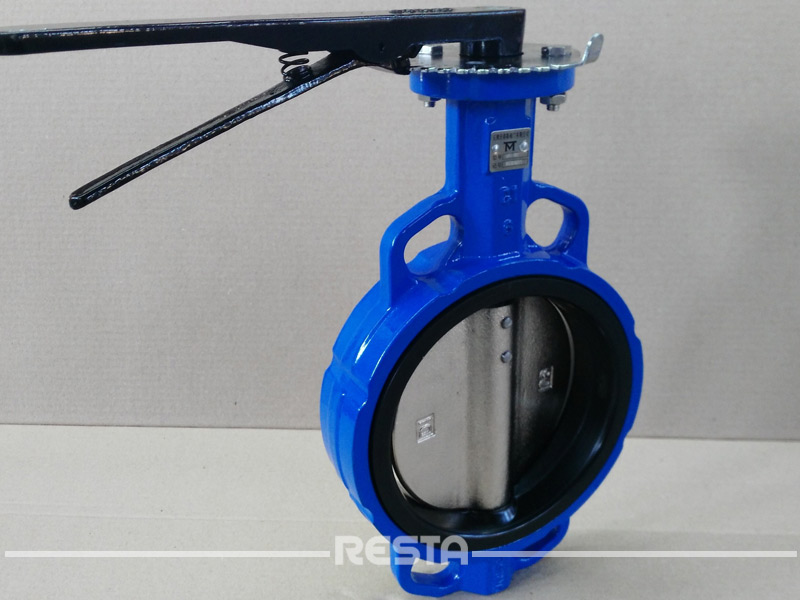

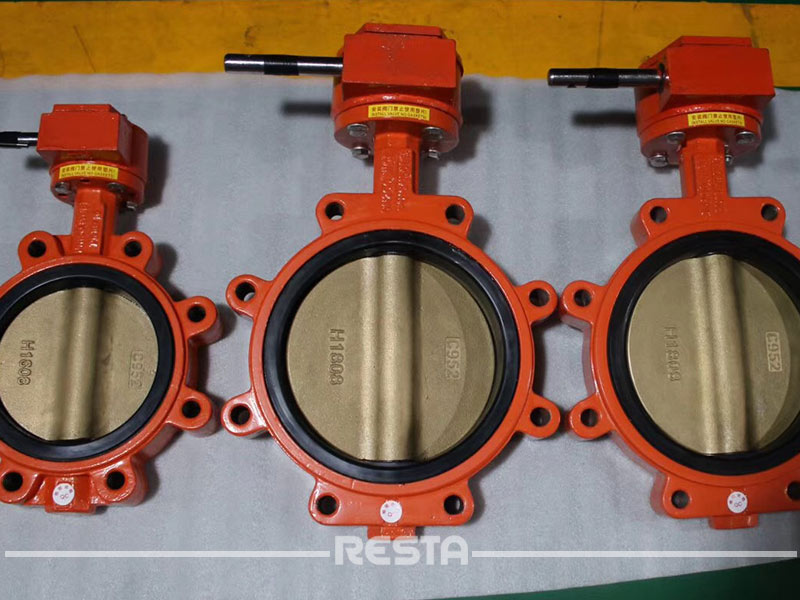

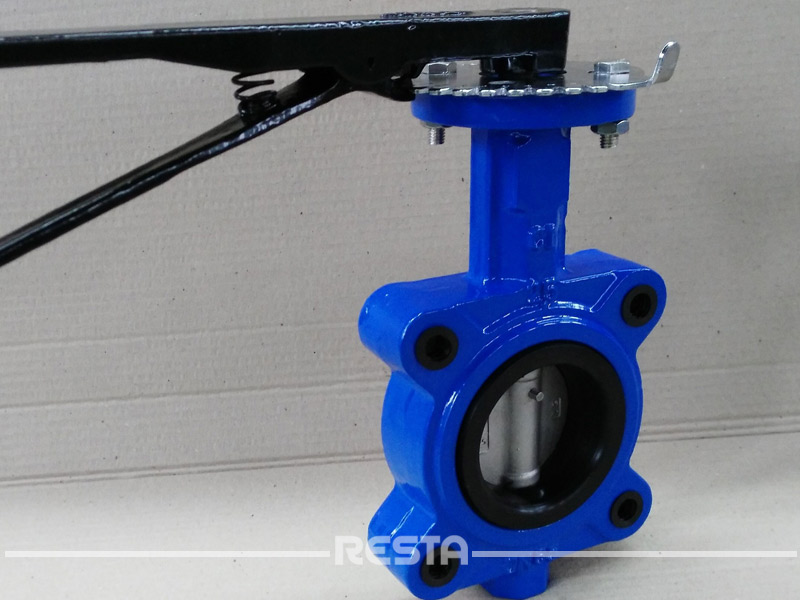

Wafer Concentric Butterfly Valve

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP,DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

Concentric Butterfly Valves is designed to maintain a seal against bi-directional pressure differential to prevent backflow in systems designed for unidirectional flow. It accomplishes this with a tightly fitting seal, i.e., gasket, o-ring, precision machined, and a flat valve face on the upstream and downstream sides of the valve, valves have threaded inserts at both sides of the valve body. This allows them to be installed into a system using two sets of bolts and no nuts. The valve is installed between two flanges using a separate set of bolts for each flange. This setup permits either side of the piping system to be disconnected without disturbing the other side.
Concentric Butterfly Valves are with main Features as below:
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202
Materials: Cast Iron and Ductile Iron
Pressure Ratings: ANSI 150#, PN10, PN16
Size Ranges: 2″ to 48″-50mm to 1200mm (Larger sizes upon request)
Ends Connections: Lug
Optional Seat: Resilient NBR, EPDM, VITON
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic

For more information about Wafer Concentric Butterfly Valve, please contact us by email info@restavalve.com or leave message below
