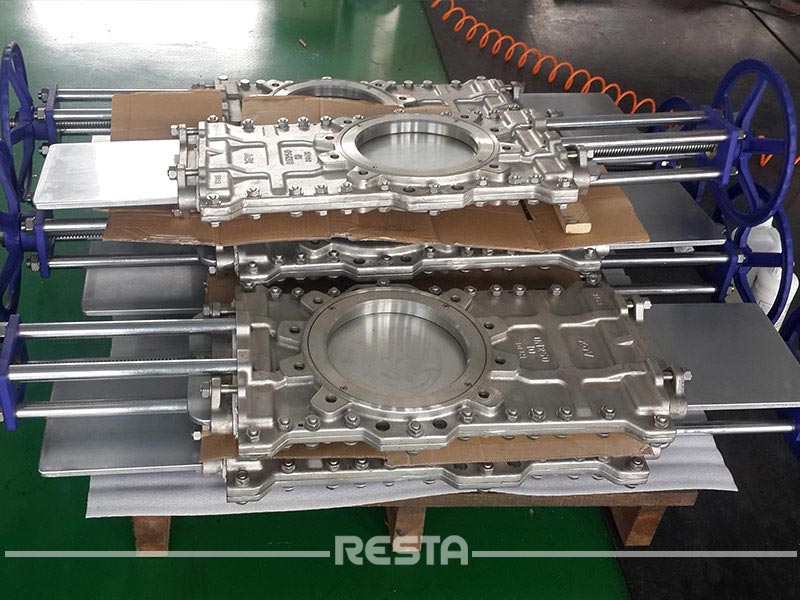

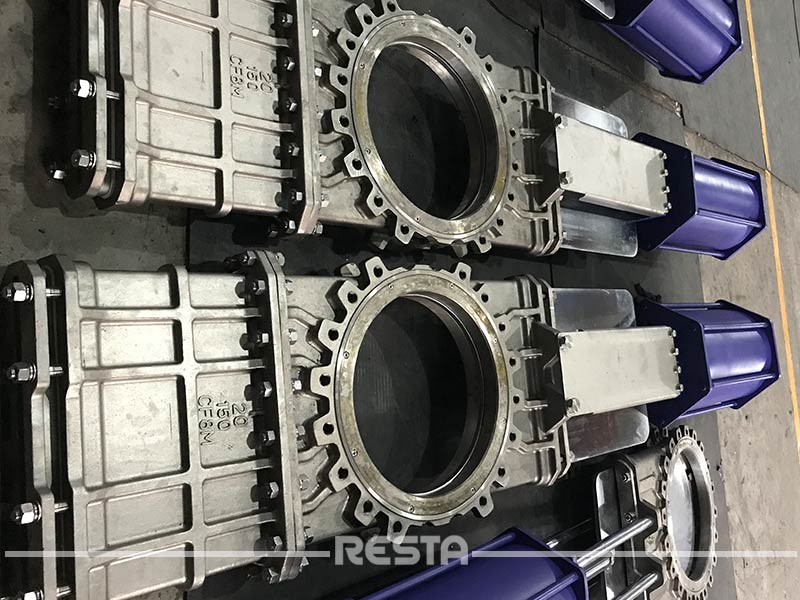

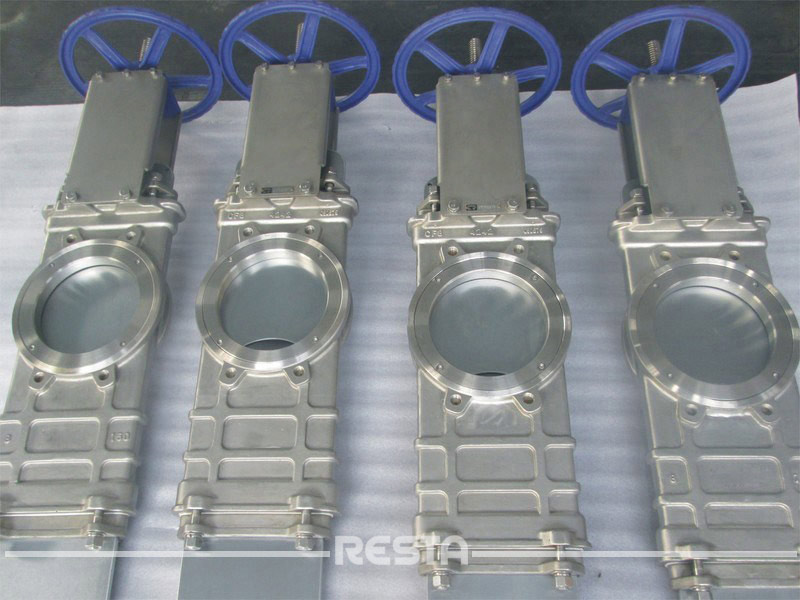

Through Conduit Knife Gate Valve

Thought conduit knife gate valve is characterized by precise structure, good workmanship and compact structure. Due to valve body has no grooves, so the medium will not be blocked in the body. And, and it has through conduit characteristics, which is suitable for pipeline with powder particle media. The sealing structure can be soft seated or metal to metal seated. Seat is designed with renewable structure, wear-proof and automatic compensation function. In the process of operating, the valve seat and gate always move closely, which has the characteristics of cutting off the medium.
Inquiry now
Catalog

Through Conduit Knife Gate Valve Basic Character:

Size ranges from 2”to 60” diameter, pressures in PN6, PN10, PN16, ANSI # Class 125 & Class 150. A broad body and trim materials are selected and fabricated to suit for various service conditions
Applications but not limited to areas of Pulp and Paper, Power plants, Wastewater treatment plants, Chemical plants, Food and Beverage, Bulk handling and Mining
Standard: MSS SP-81, ASME B16.10, ASME B16.5, ASME B16.47, ASME B16.34, AS 2129 T/D or T/E, BS 4504 T/D or T/E, MSS SP-55 and EN 1092
Optional top flanges to ISO 5211
Qualified for both gaseous and liquid services
Broad line of body and trim materials for a variety of medium service.
MSS SP-81
Uni- or Bi-direction
Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Alloy Steel, Duplex steel
Pressure Ratings: ANSI 150#, PN10, PN16
Size Ranges: 2″ to 60″-50mm to 1500mm (Larger sizes upon request)
Without Bolted Bonnet
Ends Connections: Lugged

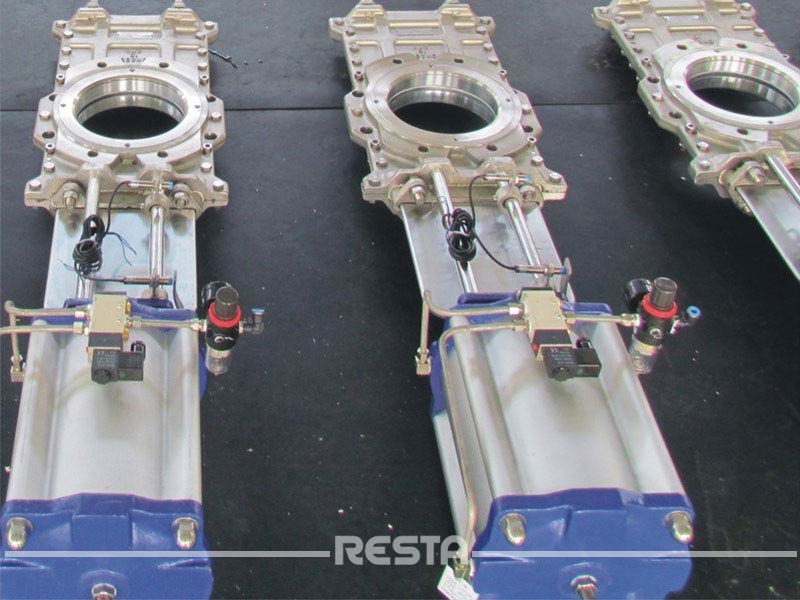

Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
For more information about Through Conduit Knife Gate Valve, please contact us by email info@restavalve.com or leave message below
