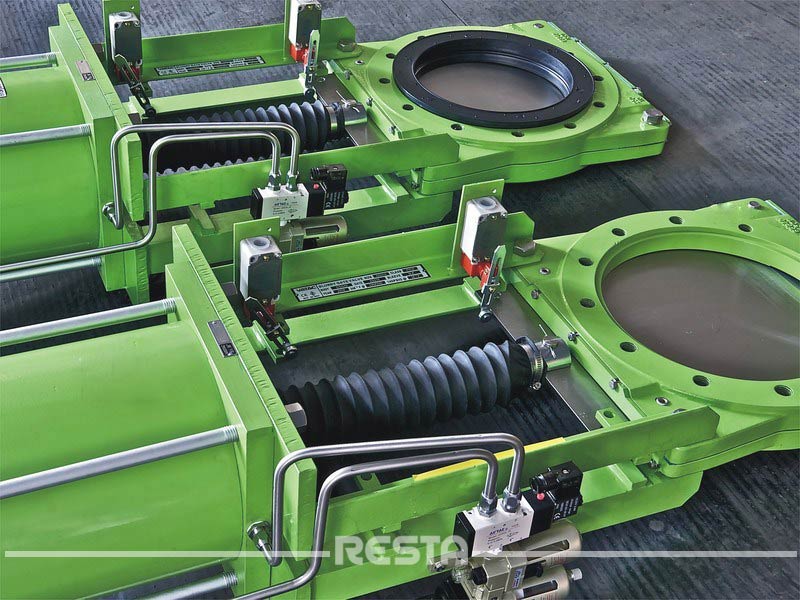

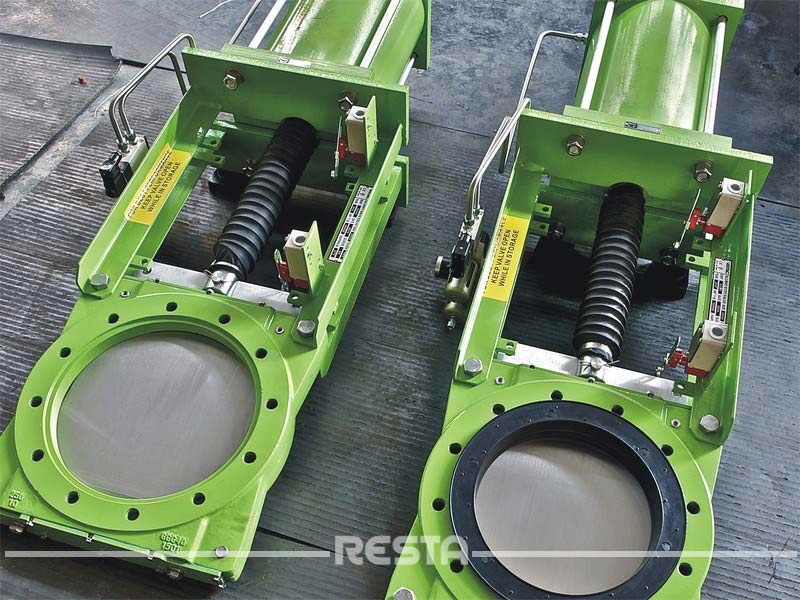

Slurry Knife Gate Valve

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP,DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

Slurry Knife Gate Valves are designed as full rubber lined body to realize Tight-seal, Ends connections in Wafer. Size ranges from 2” to 48” diameter, pressures in PN6, PN10, PN16, ANSI # Class 125 & Class 150. A broad body and trim materials are selected and fabricated to suit for various service conditions

applications but not limited to areas of

Pulp and Paper,  Power plants,  Wastewater treatment plants

Chemical plants,  Food and Beverage,   Bulk handling, Mining

STANDARDS COMPLIANCE:

MSS SP-81  ASME B16.10  ASME B16.5  ASME B16.47  ASME B16.34

AS 2129 T/D or T/E  BS 4504 T/D or T/E  MSS SP-55  EN 1092

Optional top flanges to ISO 5211

Qualified for both gaseous and liquid services

Broad line of body and trim materials for a variety of medium service.

MSS SP-81

Bi-direction

Materials: SS304, SS316

Pressure Ratings: ANSI 150#, PN10, PN16

Size Ranges: 2″ to 48″- 50mm to 1200mm (Larger sizes upon request)

Without Bolted Bonnet

Ends Connections: Wafer

Actuations: Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic

For more information about Slurry Knife Gate Valve, please contact us by email info@restavalve.com or leave message below
