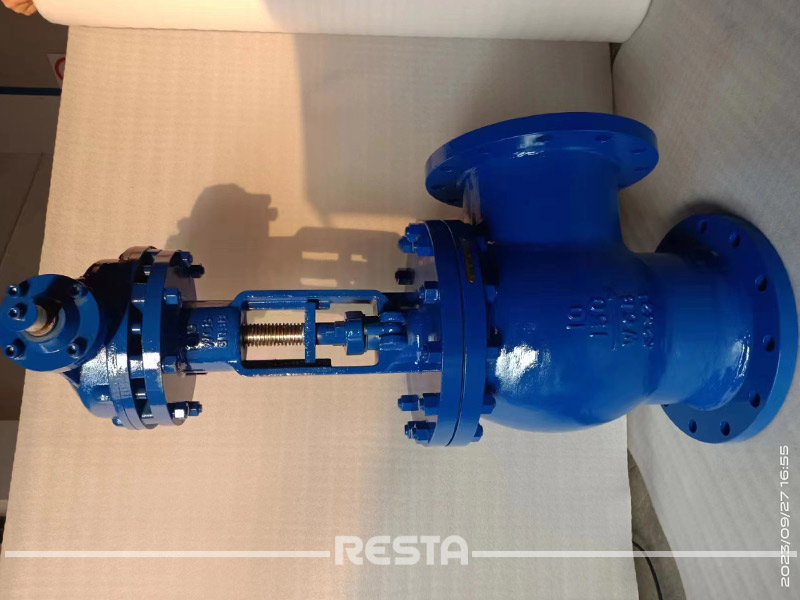

SDNR Valve (Angle Globe Valve)

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP,DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

SDNR Valve (Angle Globe Valve)  have two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug, called disk or disc, which can be screwed in to close (or shut), or screwed out to open the valve. Promet Valves offers two varieties of Globe Valves: SDNR, Screw Down Non Return; and, SDSL, Screw Down Screw Lift. The SDNR offers two features, one being basic to Stop Valves plus the additional Check Valve feature of closing the valve acted by back-flow. The SDSL offers the basic feature of traditional Stop Valves.
SDNR Valve (Angle Globe Valve) are with main Features as below:
Size Ranges: 1 1/2” through 48”
Pressure Ratings: ANSI #150 to 2500
Standards compliance: API 600, ASME B16.34 or equivalents
Materials: Cast Carbon Steel, Cast Stainless Steel, Cast Duplex or Other Specials
Ends Connections: Flanged(FF, RF, RTJ) to international standards
OS&Y, Outside Stem and Yoke
Metal-sealed(API Trim # 1, #5, #8, #10 and etc.)
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211

For more information about SDNR Valve (Angle Globe Valve), please contact us by email info@restavalve.com or leave message below
