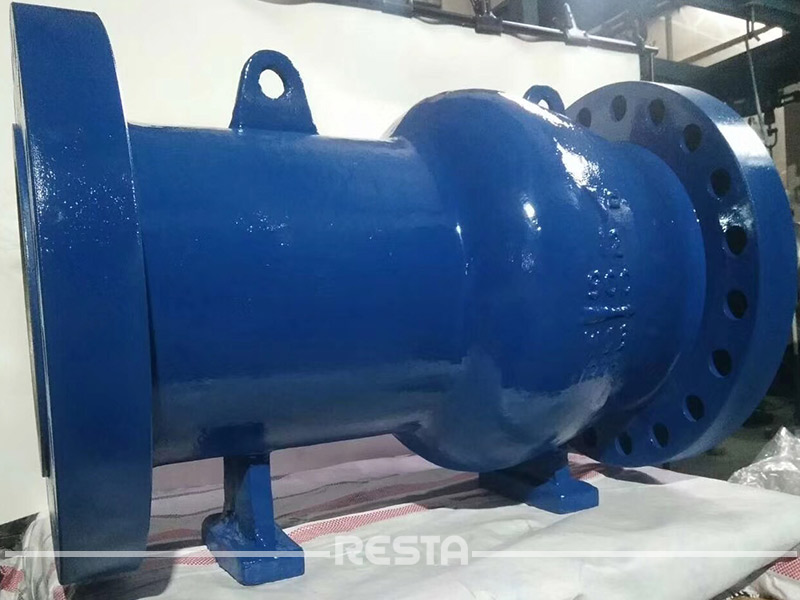

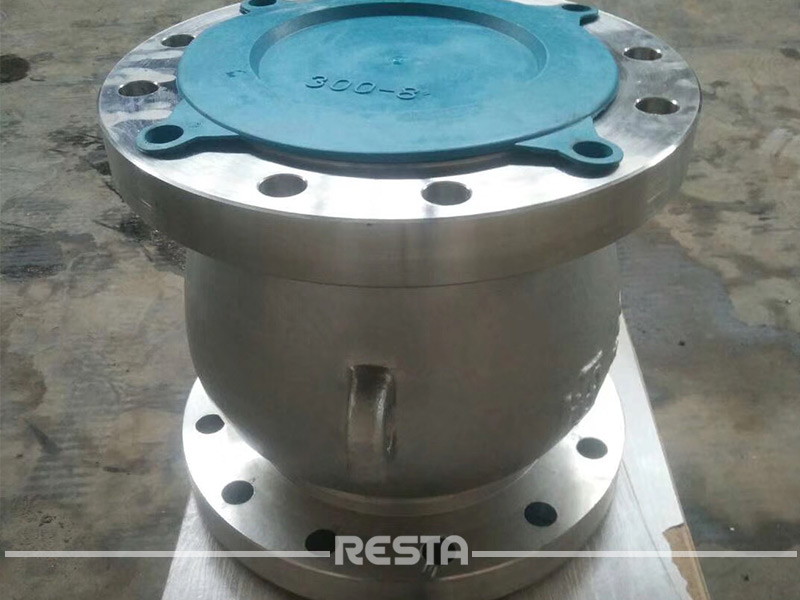

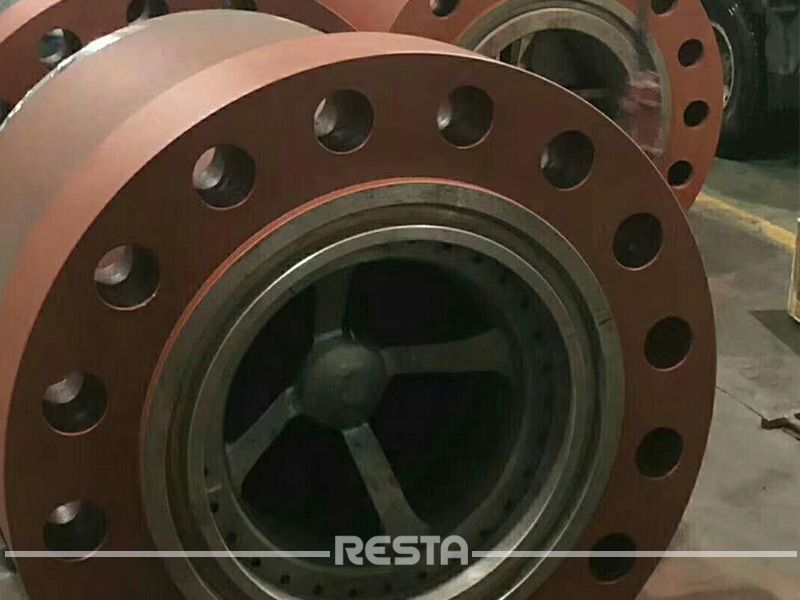

None Slam Check Valve
Delivery: 40 days by order quantity
Payment Terms: T/T, L/C, DP，DA
Delivery Port: Shanghai, China
Guarantee: 18 months after shipment
Technical Specification
Non-slam Check Valves are designed and manufactured to ensure low leakage to international standards, Extensive base line laboratory testing (static and cycle testing) has been performed establishing critical design parameters necessary to achieve low emission sealing in the Cast Iron non-slam Checks, In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing criteria consistently result in the cast iron check Valve meeting a maximum of leakage prior to shipment.
Silent or Non Slam Check Valve is the valve of choice in applications when silent operation and cost are of major concern. Its short linear stroke and spring return action combine to close the valve prior to flow reversal. This effectively eliminates the shock and water hammer normally associated with the sudden stoppage of a reverse flow. Its silent operation and low purchase price have made it a favorite of engineers in clear liquid applications.
Design Features:
Double Guided Disc
Large Bearing Surfaces
Cast Iron Body / Bronze of Stainless Steel Trim
Silent Operation with Low Head Loss in a Compact Wafer Body
Specially Designed Spring Controls The Closure of Vatac Silent Check Valves
Water Hammer and Damaging Shock Reducing Efficiently
Easily Replaceable Parts and Bronze Bushing
Optional Counterweight or Bypass Devices
Functions Equally Well in All Positions
Drop-Tight Seating
API 6D, ASME B16.34, DIN 3202
ASME B16.10, BS EN558
ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, BS 2532-2533, ISO 5208, API 598
Sizes: 2″ thru 40″
Body Styles: End connections Wafer or Flanged Ends
Pressure Class: ASME #150 thru ASME #1500
