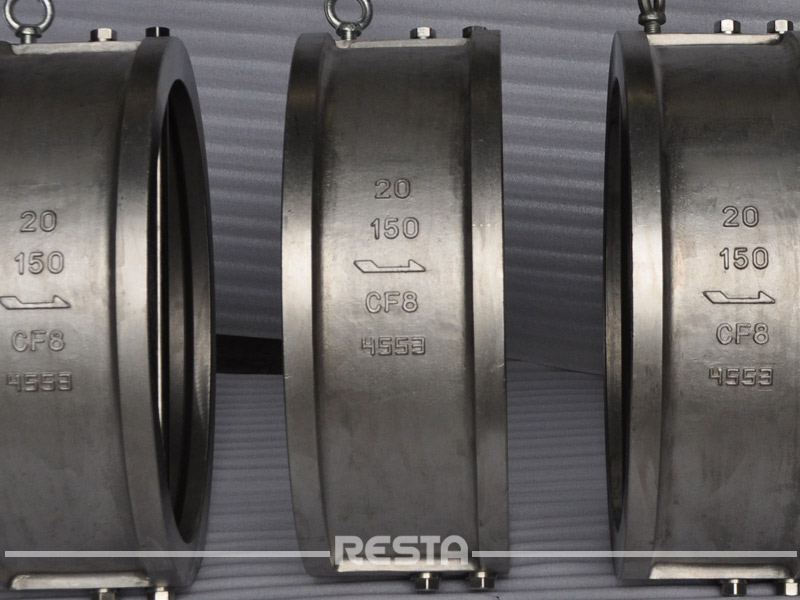

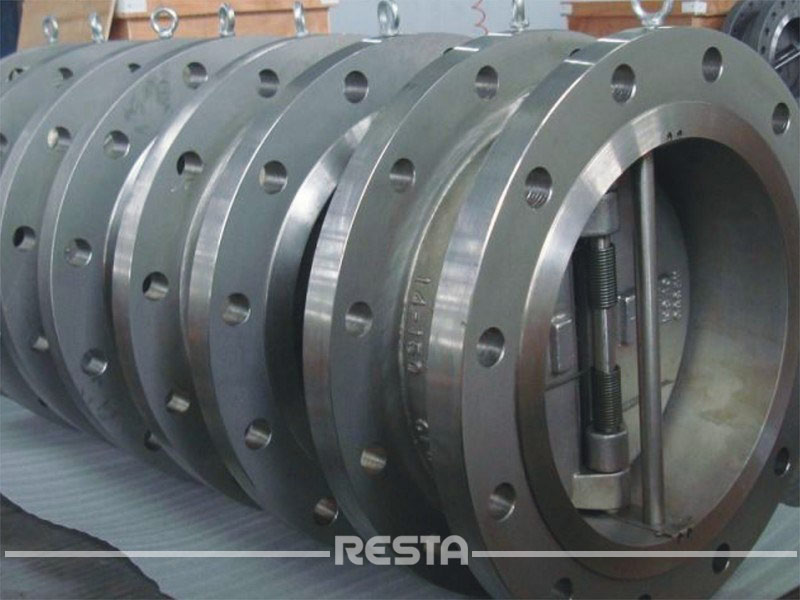

Dual Plate Check Valve

Delivery: 40 days by order quantity

Payment Terms: T/T, L/C, DP,DA

Delivery Port: Shanghai, China

Guarantee: 18 months after shipment

Technical Specification

Dual Plate Check Valves designed and manufactured strictly to International Standards API 6D, API 594, ASME B16.34 or Equivalent.
Standards Compliance and Design Features:
Design & Manufactured to API 6D, API 594, ASME B16.34 or Equivalent
P.T Ratings to ASME B16.34
Face to Face Dimensions to ASME B16.10
Flanged Ends to ASME B16.5
Butt-weld Ends to ASME B16.25
Valves Marking to MSS SP-25
Inspect & Tested to API 598
Size Ranges from 1/2” thru 60”.
Structured in One Piece Union Body
Pressure Ratings from Class 150 to Class 2500, PN16 to PN420
Ends Connections in Flanged R.F or RTJ, Wafer, Fully Lugged and Grooved
A variety of body and trim material is offered, including carbon steel ASTM A216 WCB, WCC; Cast or Ductile iron A126, GG25, A536 or GGG50, Low Carbon Steel LCB, LCC, Alloy Steel WC6, WC9, C5, Stainless Steel CF8, CF8M, CF3, CF3M, Duplex & Super Duplex Steel A890 GR.4A,5Aor F51, Special Materials in Monel, Alu. Bronze C95800, 95600 etc. Coatings may be provided for added corrosion or wear resistance. Hard-facing and weld overlays may also be supplied. Seats Options with metal-to-metal or bubble-tight resilient.
Optional Bypass system & Counter-weight Assembly.

For more information about Dual Plate Check Valve, please contact us by email info@restavalve.com or leave message below
