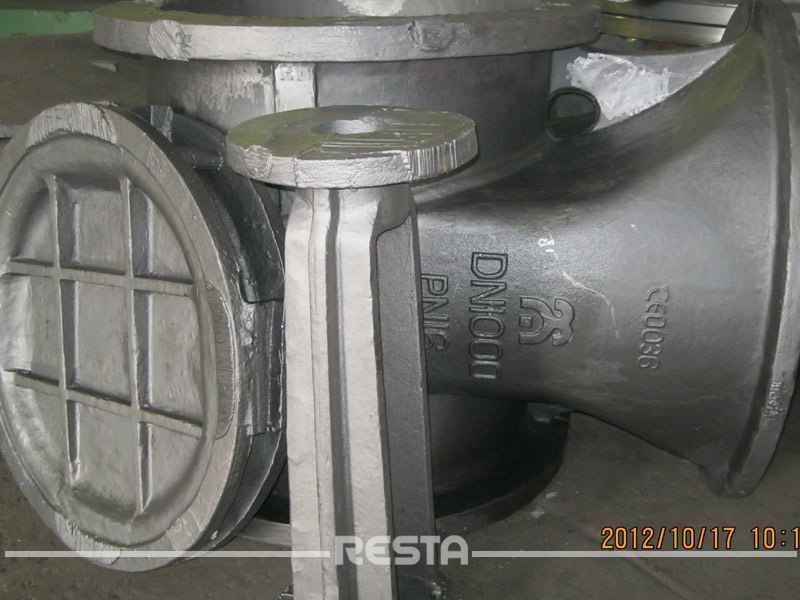

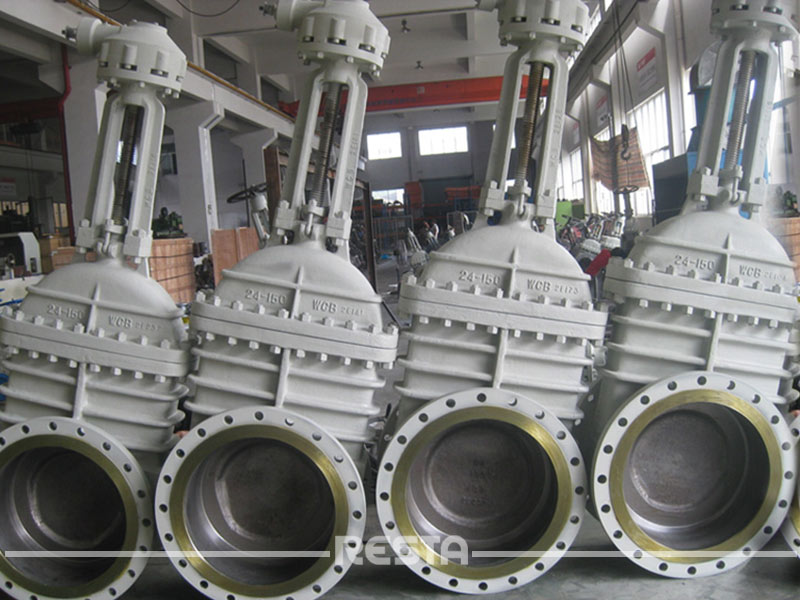

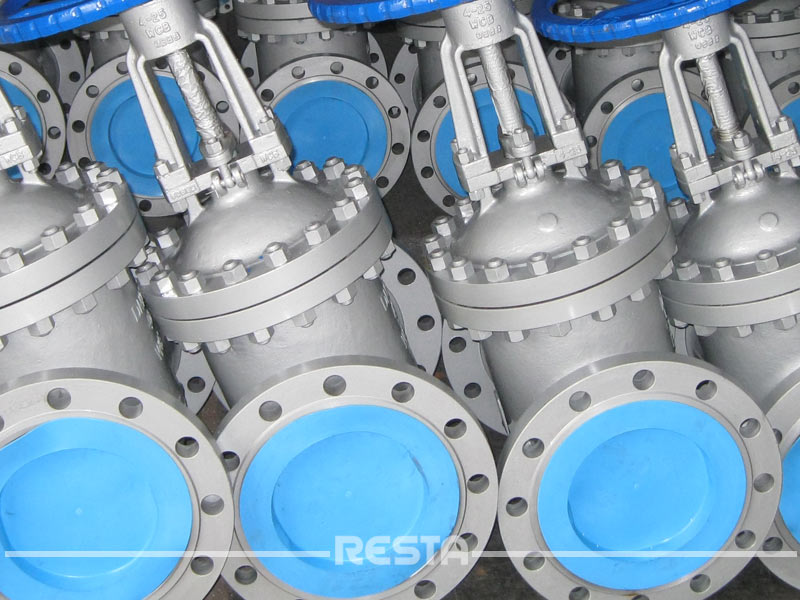

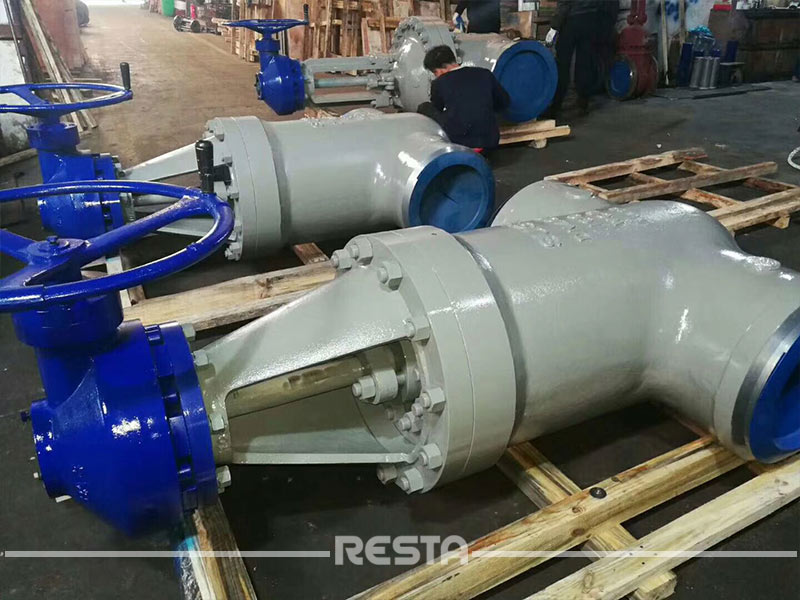

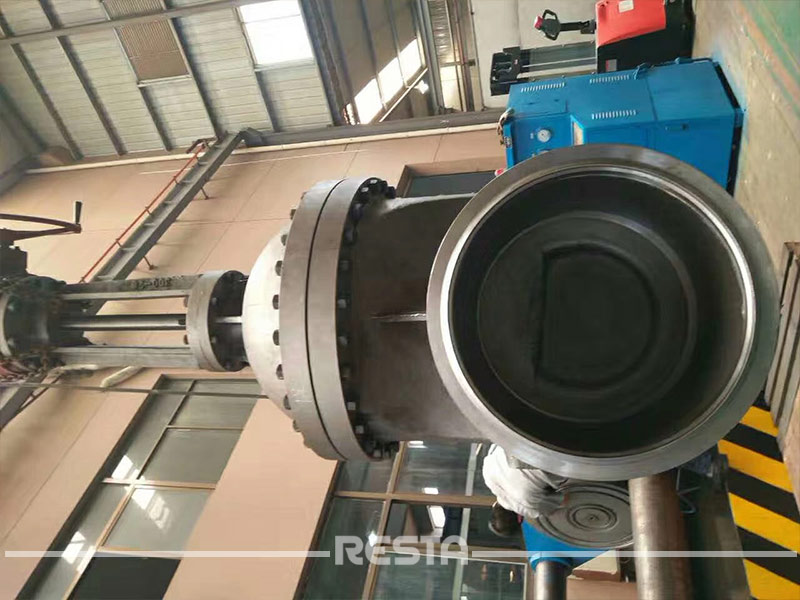

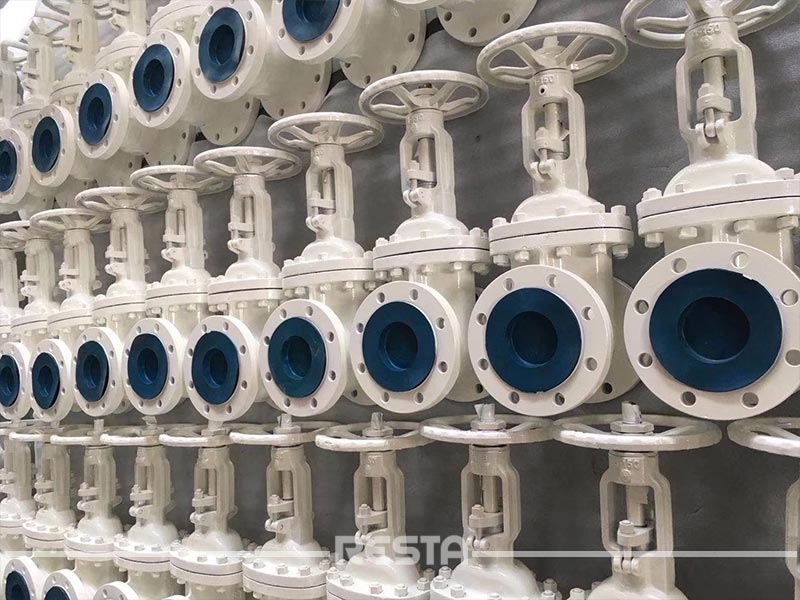

Cast Steel Gate Valve
Delivery: 40 days by order quantity
Payment Terms: T/T, L/C, DP，DA
Delivery Port: Shanghai, China
Guarantee: 18 months after shipment
Technical Specification
Cast Steel Gate Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds. Extensive base line laboratory testing (static and cycle testing) has been performed establishing critical design parameters necessary to achieve low emission sealing in the stem packing seal area and in the bonnet gasket sealing area, In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing criteria consistently result in the Cast Steel Gate Valve meeting a maximum of 100 ppm VOC leakage prior to shipment.
Cast Steel Gate Valves are with main Features as below:
Size Ranges: 1 1/2” through 48”
Pressure Ratings: ANSI #150 to 2500
Standards compliance: API 600, ASME B16.34 or equivalents
Materials: Cast Carbon Steel, Cast Stainless Steel, Cast Duplex or Other Specials
Ends Connections: Flanged(FF, RF, RTJ) to international standards
OS&Y, Outside Stem and Yoke
Metal-sealed(API Trim # 1, #5, #8, #10 and etc.)
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
